rFSM Statecharts

v1.0

Table of Contents

1 Overview

rFSM is a small and powerful Statechart implementation. It is mainly designed for Coordination of complex systems but is not limited to that. rFSM is written in pure Lua and is therefore highly portable and embeddable. As a Lua domain specific language rFSM inherits the extensibility of its host language.

rFSM is dual licensed under LGPL/BSD.

This README is also available in HTML and Text format in the doc/ subdirectory.

2 Setup

Make sure you have Lua 5.1 installed and the rFSM folder is in your LUA_PATH. For example:

export LUA_PATH=";;;/home/mk/src/git/rfsm/?.lua"

If your LUA_PATH is already set to something, then just add the rFSM path instead of overwriting it:

export LUA_PATH="$LUA_PATH;/home/mk/src/git/rfsm/?.lua"

3 Introduction

rFSM is minimal Statechart flavor designed for Coordinating of complex systems such as robots. It has the following features:

  • Hierarchical (composite) states
  • Completion events
  • Parametrizable and reusable states
  • Easy to build statemachines by composing existing states/state machines
  • Plugin mechanism permits extending the core engine. Available plugins include timeevents, event memory, sequential AND states and more.
  • Real-time safe operation possible using lua-tlsf/rtp1

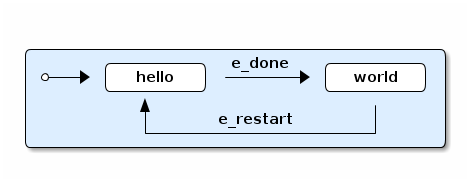

The following shows a simple hello_world example


1:  return rfsm.state {
2:     hello = rfsm.state { exit=function() print("hello") end },
3:     world = rfsm.state { entry=function() print("world") end },
4:
5:     rfsm.transition { src='initial', tgt='hello' },
6:     rfsm.transition { src='hello', tgt='world', events={ 'e_done' } },
7:     rfsm.transition { src='world', tgt='hello', events={ 'e_restart' } },
8:  }

The first line defines a new toplevel composite state and returns it. The root state of an rFSM state machine is always a state itself. This permits it to be composed as a substate in a different state machine. The return statement facilitates reading rfsm model files by tools or other state machines.

The second and third line define two leaf states that are part of the toplevel composite state. hello defines an exit function and world an entry function which are called when the state is exited/entered, respectively.

The next three lines define transition between these states. The first is from the initial connector to the hello state. This transition will be taken the first time the composite state is entered. The initial connector, as an exception, need not be defined and will be created automatically when referenced from a transition.

The next transition is from hello to world and is triggered by the e_done event. This event is raised internally when a state completes, which is either the case when the states 'doo' function (see below) finishes or immediately, if there is no doo, as is the case here. The third transition is triggered by the e_restart event.

Next we execute this statemachine in the rfsm-simulator:

PMA-10-048 ~/prog/lua/rfsm(master) $ tools/rfsm-sim examples/hello_world.lua
Lua 5.1.4  Copyright (C) 1994-2008 Lua.org, PUC-Rio
rFSM simulator v0.1, type 'help()' to list available commands
INFO: created undeclared connector root.initial
> step()
hello
active: root.hello(done)
queue:  e_done@root.hello

We execute step() to advance the state machine once. As this is the first step, the fsm is entered via the 'initial' connector to the hello state. After that the state hello is active and done (because no doo function is defined). Consequently, an e_done completion event has been generated and placed in the queue. So the next step…

> step()
world
active: root.world(done)
queue:  e_done@root.world

… causes a transition to world. As the world state completion event does not trigger any transitions, running step() again does not have any effect:

> step()
active: root.world(done)
queue:

But we can manually send in the e_restart event and call step(), which takes us back to hello:

> se("e_restart")
> step()
hello
active: root.hello(done)
queue:  e_done@root.hello

4 Specifying rFSM models

rFSM state machines are constructed using three model elements: states, connectors and transitions.

(all functions are part of the rfsm module, thus need to be called in Lua with the rfsm prefix, e.g. rfsm.state{})

4.1 States (rfsm.state)

States are used to model discrete states of the system and can be either composite or leaf states. A composite state contains other states, while a leaf state does not. States can define entry and exit functions

entry(fsm, state, 'entry')
exit(fsm, state, 'exit')

that are called when the state is entered or exited respectively. The arguments passed in are the toplevel statechart, the current state and the string 'entry' resp. 'exit'. Normally you don't need these arguments and should not change them either. (The rationale behind the second and third argument is to permit one function to handle entry and exit of multiple states and hence needs to identify these).

4.1.1 The doo function

Leaf states may additionally define a do function (it is called doo in rFSM to avoid clashes with the identically named Lua keyword).

bool doo(fsm, state, 'doo')

The doo function is used to perform actions while a leaf state is active. To that end it can be used such that it is repeatedly called until either the function completes or an event triggers a transition to a different state.

Implementationwise, this function is treated as a Lua coroutine. This enables the following two use-cases:

  1. doo is a regular function: doo is executed once and a completion event e_done is raised afterwards (if no doo function is defined this event is raised immediately after execution of the entry function).
  2. Long running doo with voluntary preemption: while possible, it is not recommended to define a doo function that runs for a longer time, because this would prevent incoming events to trigger transitions. Therefore, the rfsm.yield() call can be inserted at appropriate points into a long running doo to explicitly return control to the rfsm engine, that then checks for new events and potentially executes transitions.

(Note: rfsm.yield is currently only an alias to coroutine.yield)

The following example illustrates the second use case:

doo = function(fsm)
         while true do
            if min_distance() < 0.1 then
               rfsm.send_events(fsm, "e_close_obj")
            end
            rfsm.yield()
         end
      end

This doo will check a certain condition repeatedly and raise the "e_close_obj" event if it is true. Each cycle the control is returned to the rFSM core by calling rfsm.yield().

rfsm.yield(idle_flag) accepts a Boolean argument (called the "idle flag") that influences how doo is called by the rFSM core: if true it will cause the rFSM core to go idle, provided there are no other events. If false (the default2 if no arguments are given) and there are no other events, doo will be called in a tight loop. It depends on each application which idle_flag is appropriate. In general the idle_flag should always be true unless the intention is that the doo function is executed as fast as possible (potentially consuming a lot of CPU!).

4.1.2 Configuring a State Machine

The root composite state honors some extra fields to refine the global FSM behavior.

Configuring error, warning, informational and debug output. The err, warn, info and dbg fields can be used to fine tune how these messages are output. The value of these fields can be either true or false or set to a function that accepts a variable list of arguments. The default is to write errors and warnings to stderr and info to stdout. Debug messages are turned off by default. Nicer and configurable pretty printing of debug output is provided by the rfsmpp module (described below).

The getevents hook. The getevents hook is called by the rFSM core whenever it needs to check for new events. This function is the central mechanism to integrate rFSM into existing systems. The expected behavior is to return a Lua table of events (array part only). These events are then used to check for enabled transitions.

4.2 Transitions (rfsm.transition)

Transitions define how a state machine changes state upon receiving events:

Example:

rfsm.transition {
    src='stateX', tgt='stateY', events = {"e1", "e2"},
    guard=function()
              if getVal() > 0.3 then
                  return false
              end
              return true
          end,
    effect=function () do_this() end
}

The above defines a transition between stateX and stateY which is triggered by the events e1 and e2. The guard condition (optional) will prevent the transition from being executed if it returns false. The effect function (optional) will be executed during the transitioning of the function. If no events are specified, this is interpreted as any events will trigger the transition.

Three ways of specifying the src and target states are supported: local, relative or absolute. In the above example stateX and stateY are referenced locally and must therefore be defined within the same composite state as the transition.

Relative references specify states that are more deeply nested (relative to the position of the transition). Such references starts with a leading dot. For example:

return rfsm.state{
   operational=rfsm.state{
      motors_on = rfsm.state{
         moving = rfsm.state{},
         stopped = rfsm.state{},
         rfsm.trans{src='initial', tgt='stopped'},
      },
      rfsm.trans{src='initial', tgt='motors_on'},
   },
   off=rfsm.state{},
   rfsm.trans{src='initial', tgt=".operational.motors_on.moving" }
   rfsm.trans{src=".operational.motors_on.stopped", tgt='off', events={'e_off'} }
}

The first transition is defined between the (locally referenced) initial connector to the relatively referenced moving state. This permits to refine the default behavior of the operational state, namely entering motors_on.stopped (due to the initial connectors), to instead enter the motors_on.moving state.

The second transition defines a transition from the relatively referenced operational.motors_on.stopped to off. Here the intention is to constrain the states from which one can reach the off state: turning the device off is only permitted if it is not moving.

At last absolute references begin with "root." Using absolute syntax is strongly discouraged for anything other than testing, as it breaks compositionality: if a state machine is used within a larger statemachine the absolute reference is broken.

Furthermore, transitions support so called priority numbers. Priority numbers serve to resolve conflicts within one hierarchical level. In case two transitions are enabled by a set of events, the transition with the higher priority number will be executed. Priority numbers are defined with the pn keyword on transitions, as shown below. Transitions without priority numbers are assumed to have priority 0.

rfsm.trans{ src='following', tgt='hitting', pn=10, events={ 't6' } },

If possible, statecharts should be designed not to depend on priority numbers and introduce these rather as an optimization.

4.3 Connector (rfsm.connector)

Connectors permit to define so called compound transitions by chaining multiple transition segments together. Connectors are similar to the UML junction element. Compound transitions are statically evaluated, meaning that the compound transition is only executed if each subtransition is enabled (events match and guards are true).

Also see the examples connector_simple.lua and connector_split.lua.

Connectors are useful for defining interfaces (entry and exit points) that hide internals of a composite state. The following example defines a error handling state:

return rfsm.state{
  software_err = rfsm.state{},
  hardware_err = rfsm.state{},

  initial = rfsm.conn{},
  recovered = rfsm.conn{},
  failed = rfsm.conn{},

  rfsm.trans{src='initial', tgt='software_err', events={'e_sw_err'}},
  rfsm.trans{src='initial', tgt='hardware_err', events={'e_hw_err'}},

  rfsm.trans{src='software_err', tgt='recovered', events={'e_recovered'}},
  rfsm.trans{src='hardware_err', tgt='recovered', events={'e_recovered'}},
  rfsm.trans{src='software_err', tgt='failed', events={'e_failed'}},
  rfsm.trans{src='hardware_err', tgt='failed', events={'e_failed'}},
}

Transitions 1 and 2 dispatch to different error handling states based on the events received. Transitions 3, 4, 5 and 6 connect the states to different exit connectors based on the events they generate.

Note: defining cycles is possible, but dangerous, unsupported and discouraged. It may make the yogurt in your fridge grow fine grey beards.

5 Executing rFSM models

Before running a statemachine must be initalized. This serves to validate the fsm model and transform the fsm to be suitable for execution. Initalization is done using the rfsm.init(fsm) function, that takes a (string) rfsm description as input and returns an initalized fsm. To load an rfsm from a file and initialize it, the rfsm.load(filename) function can be used:

fsm = rfsm.init(rfsm.load("fsm.lua"))

If the return value from rfsm.init is not false, initalization succeeded and the returned fsm can be run.

The function rfsm.step(fsm, n) will attempt to step the given fsm for a maximum of n times. A step can be either the execution of a transition or a single execution of the doo program. step will return either when the state machine is idle or the given number of steps has been reached. The boolean return value indicates whether the fsm is idle (true) or the maximum amount of requested steps was reached (false).

For each step the rfsm engine will invoke the getevents hook to retrieve new events and then reason about what to do (which transitions to execute or doo's to run). After that these events are discarded. If this seems inconvenient, checkout the event memory extension.

When omitted, the number of steps argument n to rfsm.step defaults to 1.

rfsm.run(fsm) calls step as long as the given fsm is not idle. Not idle means: there are either events in the queue or there is an active doo function that is not idle.

To directly send events to the fsm the function rfsm.send_events(fsm, e1, e2, ...) can be used. The first argument is the fsm to which all subsequent event arguments are sent to.

6 Common pitfalls

  1. Name clashes between state/connector names with reserved Lua keywords.

    This can be worked around by using the following syntax:

    ['end'] = rfsm.state{...}

  2. Executing functions accidentially

    It is a common mistake to execute externally defined functions instead of adding references to them:

    stateX = rfsm.state{ entry = my_func() }


    The (likely) mistake above is to execute my_func and assigning the result to entry instead of assigning my_func:

    stateX = rfsm.state{ entry = my_func }


    Of course the first example would be perfectly valid if my_func() returned a function as a result!

  3. Why doesn't my statemachine react if I send a completion event e_done from the outside?

    Short answer: because it is a syntactic shortcut for the completion event of the source state of the transition which it is defined on. During initalization it is transformed to e_done@fqn (e.g. e_root@root.stateA.stateB) If you send in the expanded completion event it will work.

    Explanation: a completion event only makes sense in the context of a state which completed. Making the state which has completed explicit in the event avoids accidentially triggering a transition labeled with a higher priority completion event that has nothing to do with the current one.

    The same holds true for rfsm_timeevent based timeevents.

  4. My FSM is using up 100% CPU, what's wrong?

    Most likely you have defined a long running doo function that does not call rfsm.yield with a true argument (the idle flag). Therefore the rFSM engine calls the doo function in a tight loop.

  5. My FSM is doing nothing, my guard are not executed, … , although I'm running step or run periodically!

    rFSM will only attempt to transition if it has at least one event in the queue! If you only want to transition based on guards, raise a dummy event (e.g. "e_any").

7 Tools and helper modules

7.1 The event memory extension (rfsm_emem module) #EventMemory

This extension adds memory of events that occurred to an rFSM statechart. This is done maintaining a table emem for every state. The keys in this table are event names and the values the number of times that event occurred while the respective state was active. The emem table is cleared when a state is exited by setting all values to 0.

This extension is useful for defining transitions that are taken only after certain events have occurred, but that do not necessarily occur within one step. Because the rFSM engine drops events after each steps this information would otherwise be lost.

To enable event memory, all you need to do is load the rfsm_emem module. Checkout the examples/emem_test.lua for more details.

7.2 Await: trigger transition only after receiving multiple events

In a nutshell, this plugin permits to trigger transitions only after multiple events have been received. These events can be received in different steps.

This is basically a specialized version of the emem plugin. This one should be preferred if no counting is required, since it is computationally much less expensive.

Behavior: When loaded, the plugin scans for events with the syntax "await(event1, event2)". This statement is transformed as follows:

  • a guard condition is generated and added to possibly existing guard conditions. It will only enable the transition if the both events have been received while the source state is active.
  • a second hook is installed in the exit function of the source state to reset the event counting. So when the source state is exited (either via or not via the await transition) and reentered again, the counting start from the beginning. It would be trivial to provide a variant of await that resets the counts only if the await transition is taken, however it is not clear right now if that would be useful at all.

For more information checkout the await.lua example.

7.3 Timeevents (rfsm_timeevent module)

This module extends the rFSM engine with time events. Time events are automatically raised after the specified time after entering a state has elapsed. To enable time events, it suffices to load the rfsm_timeevent module. Currently only relative (opposed to absolute) timeevents are supported. These can be specified on transitions using the e_done(duration) syntax, as show in the following example:

rfsm.trans{ src='A', tgt='B', events={ 'e_after(0.1)' } },

The timeevent will be raised 100ms after state A was entered.

The only requirement of a rfsm_timeevents is that a gettime function is configured using the rfsm_timeevent.set_gettime_hook(f) function. This function is expected to return the current time in two return values: seconds, nanoseconds.

An example can be found in examples/timeevent.lua

Warning: these timeevents only work while the rfsm engine is running and can not magically wake up an idle fsm. Therefore this type of timeevents typically only makes sense for fsm that are "stepped" at a fixed frequency or that never go idle.

7.4 Configurable and colorized dbg info (rfsmpp module)

The rfsmpp.gen_dbgcolor function generates a configurable and colorful dbg hook.

Usage:

rfsmpp.gen_dbgcolor(name, dbgids, defshow)
  • name is the (optional) string name to print prefixing the debug output
  • dbgids is a table that enables or disables certain dbg ids by setting them to true or false. Known debug ids are: STATE_ENTER, STATE_EXIT, EFFECT, DOO, EXEC_PATH, ERROR, HIBERNATING, RAISED, TIMEEVENT
  • defshow (bool) defines whether debug id's not mentioned in the dbgids table are shown or not.

Example:

fsm = rfsm.init(...)
fsm.dbg=rfsmpp.gen_dbgcolor("fsm1",
                            { STATE_ENTER=true, STATE_EXIT=true}, false)

Will show only STATE_ENTER and STATE_EXIT debug messages.

7.5 rfsm_checkevents plugin

This debugging helper plugin will at load-time construct a list of all events used in the FSM. If at runtime an event is received which is not known in the known list, a warning message will be printed.

To use, just require the module before creating your fsm. Important: load it after other plugins that transform events (such as timeevents), so that it picks up the transformed events.

7.6 Generate graphical representations (rfsm2uml and fsm2dbg modules)

Modules to transform rFSM models to graphical descriptions. rfsm2uml generates classical statechart figures and rfsm2tree generates a tree representation (useful to see check priorities).

Usage:

  • rfsm2uml.rfsm2uml(root_fsm, format, outfile, caption)
  • rfsm2tree.rfsm2tree(root_fsm, format, outfile)

Examples:

require("rfsm2uml")
fsm = rfsm.init(rfsm.load("fsm.lua"))
rfsm2uml.rfsm2uml(fsm, 'png', "fsm.png", "Figure caption")

or

require("rfsm2tree")
fsm = rfsm.init(rfsm.load("fsm.lua"))
rfsm2tree.rfsm2tree(fsm, 'png', "fsm-tree.png")

The rfsm-viz command line uses these modules to generate pictures.

7.7 rfsm-viz: command line front end to rfsm2uml/rfsm2tree

to generate all possible formats run:

$ tools/rfsm-viz all examples/composite_nested.lua

generates various representations (in examples/)

7.8 rfsm-sim simple rfsm simulator

small command line simulator for running a fsm interactively.

$ tools/rfsm-sim all examples/ball_tracker_scope.lua

It requires an image viewer which automatically updates once the file displayed changes. For example evince works nicely.

7.9 Lua fsm to json conversion (rfsm2json command line tool)

Based on rfsm2json.lua module and requires lua-json.

7.10 rfsm_rtt Useful functions for using rFSM with OROCOS rtt

See the Orocos LuaCookbook for more details.

8 More examples, tips and tricks

8.1 A more complete example

The graphical model:


… and the corresponding textual representation:

-- any rFSM is always contained in a state
return rfsm.state {
   dbg = true, -- enable debugging

   on = rfsm.state {
      entry = function () print("disabling brakes") end,
      exit = function () print("enabling brakes") end,

      moving = rfsm.state {
         entry=function () print("starting to move") end,
         exit=function () print("stopping") end,
      },

      waiting = rfsm.state {},

      -- define some transitions
      rfsm.trans{ src='initial', tgt='waiting' },
      rfsm.trans{ src='waiting', tgt='moving', events={ 'e_start' } },
      rfsm.trans{ src='moving', tgt='waiting', events={ 'e_stop' } },
   },

   error = rfsm.state {
      doo = function (fsm)
                 print ("Error detected - trying to fix")
                 rfsm.yield()
                 math.randomseed( os.time() )
                 rfsm.yield()
                 if math.random(0,100) < 40 then
                    print("unable to fix, raising e_fatal_error")
                    rfsm.send_events(fsm, "e_fatal_error")
                 else
                    print("repair succeeded!")
                    rfsm.send_events(fsm, "e_error_fixed")
                 end
              end,
   },

   fatal_error = rfsm.state {},

   rfsm.trans{ src='initial', tgt='on',
               effect=function() print("initializing system") end },
   rfsm.trans{ src='on', tgt='error', events={ 'e_error' } },
   rfsm.trans{ src='error', tgt='on', events={ 'e_error_fixed' } },
   rfsm.trans{ src='error', tgt='fatal_error', events={ 'e_fatal_error' } },
   rfsm.trans{ src='fatal_error', tgt='initial', events={ 'e_reset' } },
}

8.2 How to compose state machines

This is easy! Let's assume the state machine is is a file "subfsm.lua" and uses the strongly recommended return rfsm.state ... syntax, it can be included as follows:

return rfsm.state {

   name_of_state = rfsm.load("subfsm.lua"),

   otherstateX = rfsm.state{},
   ...
}

Make sure not to forget the ',' after the rfsm.load() statement!

8.3 Using rfsm with Orocos RTT

The LuaCookbook page describes how to do this.

9 API Summary

9.1 State specification

Functions to define rFSM:

FunctionShort aliasDescription
state{}state{}create a state
connector{}conn{}create a connector
transition{}trans{}create a transition

9.2 Operational functions

FunctionDescription
fsm rfsm.init(fsmmodel)create an initialized rfsm instance from model
idle rfsm.step(fsm, n)attempt to transition FSM n times. Default: once
rfsm.run(fsm)run FSM until it goes idle
rfsm.send_events(fsm, ...)send one or more events to internal rfsm event queue

9.3 Hooks

The following hook functions can be defined for a toplevel composite state and allow to refine various behavior of the state machine.

FunctionDescription
dbgcalled to output debug information. Set to false to disable. Default: false.
infocalled to output informational messages. Set to false to disable. Default: stdout.
warncalled to output warnings. Set to false to disable. Default stderr.
errcalled to output errors. Set to false to disable. Default stderr.
table getevents()function which returns a table of new events which have occurred.

Lower level functions (not for normal use):

Use these to manage step hooks. Setting pre_step_hook and post_step_hook directly is not permitted anymore:

FunctionDescription
pre_step_hook_add(fsm, hook, where)install function hook to be called before each rfsm step of fsm
post_step_hook_add(fsm, hook, where)install function hook to be called after each rfsm step of fsm

idle_hook(fsm): if defined, called instead of returning from step/run functions. Used only for debugging purposes.

10 Contact

Please direct questions, bugs or improvements to the orocos-users mailing list.

11 Download

The code can be found in this git repository.

A cheatsheet summarizing the DSL is available here.

12 Acknowledgement

  • Funding

    The research leading to these results has received funding from the European Community's Seventh Framework Programme (FP7/2007-2013) under grant agreement no. FP7-ICT-231940-BRICS (Best Practice in Robotics)

  • Scientific background

    This work borrows many ideas from the Statecharts by David Harel and some from UML 2.1 State Machines. The following publications are the most relevant

    David Harel and Amnon Naamad. 1996. The STATEMATE semantics of statecharts. ACM Trans. Softw. Eng. Methodol. 5, 4 (October 1996), 293-333. DOI=10.1145/235321.235322 http://doi.acm.org/10.1145/235321.235322

    The OMG UML Specification: http://www.omg.org/spec/UML/2.3/Superstructure/PDF/

Footnotes:

1 See this Real-time Linux Workshop paper, lua-tlsf and the minimal Lua real-time POSIX bindings

2 The reason for this choice of default is that it fails more obviously (100% CPU load) than the opposite (doo function not executed properly).

Date: 2013-01-24

Author: Markus Klotzbuecher

Org version 7.8.11 with Emacs version 23

Validate XHTML 1.0
