Holds all exported operations of a component and is able to produce callers for these operations. More...

#include <rtt/OperationInterface.hpp>

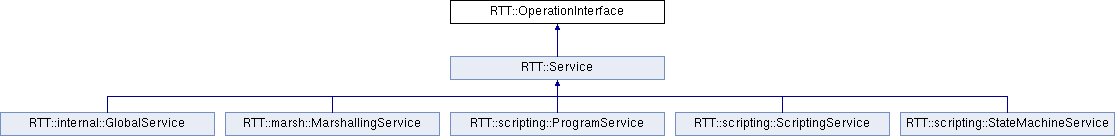

Inheritance diagram for RTT::OperationInterface:

Public Types
typedef std::vector < base::DataSourceBase::shared_ptr >	Arguments
	The arguments for an operation.
typedef std::vector < ArgumentDescription >	Descriptions
	The descriptions of an argumentlist.
Public Member Functions
void	clear ()
	Remove and delete all added operations.
std::vector< std::string >	getNames () const
	Get a list of all the names of the added operations.
bool	hasMember (const std::string &name) const
	Query if an operation is present.
int	getArity (const std::string &name) const
	Query the number of arguments of an operation.
int	getCollectArity (const std::string &name) const
	Query the collectable number of arguments of an operation.
bool	isSynchronous (const std::string &name) const
	Query if a given operation is limited to sychronous invocation (own component thread) only.
base::DataSourceBase::shared_ptr	produce (const std::string &name, const Arguments &args, ExecutionEngine *caller) const
	Produce a DataSource that call()s an operation.
base::DataSourceBase::shared_ptr	produceSend (const std::string &name, const Arguments &args, ExecutionEngine *caller) const
	Produce a DataSource that send()s an operation.
base::DataSourceBase::shared_ptr	produceHandle (const std::string &name) const
	Produce an AssignableDataSource that contains a SendHandle, fit for the operation.
base::DataSourceBase::shared_ptr	produceCollect (const std::string &name, const Arguments &args, internal::DataSource< bool >::shared_ptr blocking) const
	Produce a DataSource that collects a sent operation, The DataSource will return the SendStatus and store the results in the presented arguments.
Descriptions	getArgumentList (const std::string &name) const
	Get the names and descriptions of all arguments of an operation.
std::string	getResultType (const std::string &name) const
	Get the type name of the result type of an operation.
std::string	getDescription (const std::string &name) const
	Get the description of an operation.
void	add (const std::string &name, OperationInterfacePart *part)
	Add a new operation to the interface or replace an existing one.
void	remove (const std::string &name)
	Remove an added operation from the interface.
OperationInterfacePart *	getPart (const std::string &name)
	Get a previously added part of this factory.
Protected Types
typedef std::map< std::string, OperationInterfacePart * >	map_t
Protected Attributes
map_t	data

Detailed Description

Holds all exported operations of a component and is able to produce callers for these operations.

Definition at line 62 of file OperationInterface.hpp.

Member Function Documentation

void OperationInterface::add	(	const std::string &	name,
		OperationInterfacePart *	part
	)

Add a new operation to the interface or replace an existing one.

Parameters:

name	The name of the operation
part	A part which creates the operation.

Definition at line 170 of file OperationInterface.cpp.

OperationInterface::Descriptions OperationInterface::getArgumentList ( const std::string & name ) const

Get the names and descriptions of all arguments of an operation.

Parameters:

name	The name of the operation

Returns:: A list of descriptions.

Exceptions:

name_not_found_exception

Definition at line 146 of file OperationInterface.cpp.

int OperationInterface::getArity ( const std::string & name ) const

Query the number of arguments of an operation.

These are the number of function arguments, not counting the return value.

Parameters:

name	The name of the operation

Returns:: The arity, or -1 if name is not found.

Definition at line 77 of file OperationInterface.cpp.

int OperationInterface::getCollectArity ( const std::string & name ) const

Query the collectable number of arguments of an operation.

These are the return value (if non void) and each non-const reference argument of the operation.

Parameters:

name	The name of the operation

Returns:: The arity, or -1 if name is not found.

Definition at line 85 of file OperationInterface.cpp.

std::string OperationInterface::getDescription ( const std::string & name ) const

Get the description of an operation.

Parameters:

name	The name of the operation

Returns:: A user readable description.

Exceptions:

name_not_found_exception

Definition at line 162 of file OperationInterface.cpp.

OperationInterfacePart * OperationInterface::getPart ( const std::string & name )

Get a previously added part of this factory.

Parameters:

name

Returns:

Definition at line 188 of file OperationInterface.cpp.

Referenced by RTT::Service::create(), and RTT::Service::getOperation().

std::string OperationInterface::getResultType ( const std::string & name ) const

Get the type name of the result type of an operation.

Parameters:

name	The name of the operation

Returns:: A name of a data type.

Exceptions:

name_not_found_exception

Definition at line 154 of file OperationInterface.cpp.

bool OperationInterface::isSynchronous ( const std::string & name ) const

Query if a given operation is limited to sychronous invocation (own component thread) only.

Returns:: false if name not found or a normal operation, true if name exists but is synchronous.

Definition at line 93 of file OperationInterface.cpp.

base::DataSourceBase::shared_ptr OperationInterface::produce	(	const std::string &	name,
		const Arguments &	args,
		ExecutionEngine *	caller
	)		const

Produce a DataSource that call()s an operation.

The DataSource will return the result of call().

Parameters:

name	The name of the operation
args	The arguments filled in as data sources.

Returns:: a new object

Exceptions:

wrong_number_of_args_exception
wrong_types_of_args_exception
name_not_found_exception

Definition at line 105 of file OperationInterface.cpp.

base::DataSourceBase::shared_ptr OperationInterface::produceCollect	(	const std::string &	name,
		const Arguments &	args,
		internal::DataSource< bool >::shared_ptr	blocking
	)		const

Produce a DataSource that collects a sent operation, The DataSource will return the SendStatus and store the results in the presented arguments.

Note that this function takes most of the time less arguments than its companions.

Parameters:

name	The name of the operation
args	The arguments filled in as data sources.
blocking	Set to true to block on the result.

Returns:: a new object

Exceptions:

wrong_number_of_args_exception
wrong_types_of_args_exception
name_not_found_exception
no_asynchronous_operation_exception

Definition at line 129 of file OperationInterface.cpp.

base::DataSourceBase::shared_ptr OperationInterface::produceHandle ( const std::string & name ) const

Produce an AssignableDataSource that contains a SendHandle, fit for the operation.

The DataSource will return the SendHandle.

Parameters:

name	The name of the operation
args	The arguments filled in as data sources.

Returns:: a new object

Exceptions:

wrong_number_of_args_exception
wrong_types_of_args_exception
name_not_found_exception
no_asynchronous_operation_exception

Definition at line 121 of file OperationInterface.cpp.

base::DataSourceBase::shared_ptr OperationInterface::produceSend	(	const std::string &	name,
		const Arguments &	args,
		ExecutionEngine *	caller
	)		const

Produce a DataSource that send()s an operation.

The DataSource will return the SendHandle of that operation.

Parameters:

name	The name of the operation
args	The arguments filled in as data sources.

Returns:: a new object

Exceptions:

wrong_number_of_args_exception
wrong_types_of_args_exception
name_not_found_exception
no_asynchronous_operation_exception

Definition at line 113 of file OperationInterface.cpp.

void OperationInterface::remove ( const std::string & name )

Remove an added operation from the interface.

Parameters:

name	The name of the operation

Definition at line 178 of file OperationInterface.cpp.

Referenced by RTT::Service::removeOperation().

The documentation for this class was generated from the following files:

rtt/OperationInterface.hpp
rtt/OperationInterface.cpp
