The base class of the InputPort. More...

#include <rtt/base/InputPortInterface.hpp>

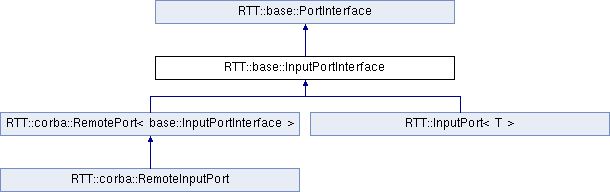

Inheritance diagram for RTT::base::InputPortInterface:

Public Member Functions
	InputPortInterface (std::string const &name, ConnPolicy const &default_policy=ConnPolicy())
void	clear ()
	Clears the connection.
ConnPolicy	getDefaultPolicy () const
virtual bool	addConnection (internal::ConnID *port_id, ChannelElementBase::shared_ptr channel_input, ConnPolicy const &policy=ConnPolicy())
	Adds a user created connection to this port.
virtual bool	removeConnection (internal::ConnID *cid)
	Removes the input channel.
virtual DataSourceBase *	getDataSource ()=0
	Returns a DataSourceBase interface to read this port.
virtual FlowStatus	read (DataSourceBase::shared_ptr source, bool copy_old_data=true)
	Reads the port and updates the value hold by the given data source.
virtual void	disconnect ()
	Removes any connection that either go to or come from this port and removes all callbacks and cleans up the NewDataOnPortEvent.
virtual bool	disconnect (PortInterface *port)
	Removes the channel that connects this port to `port`.
virtual bool	connected () const
	Returns true if this port is connected.
virtual bool	channelReady (base::ChannelElementBase::shared_ptr channel)
	Call this to indicate that the connection leading to this port is ready to use.
void	signalInterface (bool true_false)
	When called with true, will signal the DataFlowInterface when new data is available.
virtual bool	connectTo (PortInterface *other, ConnPolicy const &policy)
	Connects this port with other, using the given policy.
virtual bool	connectTo (PortInterface *other)
	Connects this port with other, using the default policy of the input.
virtual const internal::ConnectionManager *	getManager () const
	Returns the connection manager of this port (if any).
virtual internal::ConnID *	getPortID () const
	Returns the identity of this port in a ConnID object.
const std::string &	getName () const
	Get the name of this Port.
bool	setName (const std::string &name)
	Change the name of this unconnected Port.
const std::string &	getDescription () const
	Get the documentation of this port.
PortInterface &	doc (const std::string &desc)
	Set the documentation of this port.
virtual const types::TypeInfo *	getTypeInfo () const =0
	Returns the types::TypeInfo object for the port's type.
virtual internal::ConnFactory *	getConnFactory ()
	The ChannelFactory object that allows to build the ChannelElement chain needed to build connections to or from this port.
virtual bool	isLocal () const
	Returns true if this port is located on this process, and false otherwise.
virtual int	serverProtocol () const
	Returns the protocol over which this port can be accessed.
virtual PortInterface *	clone () const =0
	Create a local clone of this port with the same name.
virtual PortInterface *	antiClone () const =0
	Create a local clone of this port with the same name.
virtual Service *	createPortObject ()
	Create accessor Object for this Port, for addition to a TaskContext Object interface.
virtual bool	createStream (ConnPolicy const &policy)=0
	Creates a data stream from or to this port using connection-less transports.
void	setInterface (DataFlowInterface *iface)
	Once a port is added to a DataFlowInterface, it gets a pointer to that interface.
DataFlowInterface *	getInterface () const
	Returns the DataFlowInterface this port belongs to or null if it was not added to such an interface.
Protected Member Functions
void	signal ()
	The ConnOutputEndpoint signals that new data is available.
	InputPortInterface (const InputPortInterface &orig)
Protected Attributes
internal::ConnectionManager	cmanager
ConnPolicy	default_policy
bool	msignal_interface
DataFlowInterface *	iface

Detailed Description

The base class of the InputPort.

It contains the connection management code, which is independent of the actual data being transmitted.

Definition at line 60 of file InputPortInterface.hpp.

Member Function Documentation

bool InputPortInterface::addConnection	(	internal::ConnID *	cid,
		ChannelElementBase::shared_ptr	channel_input,
		ConnPolicy const &	policy = `ConnPolicy()`
	)		`[virtual]`

Adds a user created connection to this port.

This is an advanced method, prefer to use connectTo and createStream.

Implements RTT::base::PortInterface.

Reimplemented in RTT::corba::RemoteInputPort.

Definition at line 99 of file InputPortInterface.cpp.

References RTT::internal::ConnectionManager::addConnection().

virtual PortInterface* RTT::base::PortInterface::antiClone ( ) const [pure virtual, inherited]

Create a local clone of this port with the same name.

If this port is a local port, this is an object of the inverse direction (read for write and write for read), and same name. If this object is a remote port, then it is a local port of the inverse direction and with the same name.

Implemented in RTT::OutputPort< T >, RTT::InputPort< T >, RTT::corba::RemoteInputPort, and RTT::corba::RemoteOutputPort.

bool InputPortInterface::channelReady ( base::ChannelElementBase::shared_ptr channel ) [virtual]

Call this to indicate that the connection leading to this port is ready to use.

The input port will check its channel elements by sending an inputReady() message. If this succeeds, this function returns true and the input port is ready to use (this->connected() == true). If sending inputReady() returns failure, this method returns false and the connection is aborted (this->connected() == false).

Reimplemented in RTT::corba::RemoteInputPort.

Definition at line 106 of file InputPortInterface.cpp.

void InputPortInterface::clear ( )

Clears the connection.

After call to read() will return false after clear() has been called

Definition at line 145 of file InputPortInterface.cpp.

References RTT::internal::ConnectionManager::clear().

virtual PortInterface* RTT::base::PortInterface::clone ( ) const [pure virtual, inherited]

Create a local clone of this port with the same name.

If this port is a local port, this is an object of the same type and same name. If this object is a remote port, then it is a local port of the same type and same name.

Implemented in RTT::OutputPort< T >, RTT::InputPort< T >, RTT::corba::RemoteInputPort, and RTT::corba::RemoteOutputPort.

bool InputPortInterface::connectTo	(	PortInterface *	other,
		ConnPolicy const &	policy
	)		`[virtual]`

Connects this port with other, using the given policy.

Unlike OutputPortInterface::createConnection, other can be the write port and this the read port.

Returns:: true on success, false on failure

Implements RTT::base::PortInterface.

Definition at line 84 of file InputPortInterface.cpp.

References RTT::base::OutputPortInterface::createConnection(), and RTT::base::PortInterface::getName().

Referenced by connectTo().

bool InputPortInterface::connectTo ( PortInterface * other ) [virtual]

Connects this port with other, using the default policy of the input.

Unlike OutputPortInterface::createConnection, other can be the write port and this the read port.

Returns:: true on success, false on failure

Implements RTT::base::PortInterface.

Definition at line 94 of file InputPortInterface.cpp.

References connectTo().

virtual bool RTT::base::PortInterface::createStream ( ConnPolicy const & policy ) [pure virtual, inherited]

Creates a data stream from or to this port using connection-less transports.

Typically, policy.transport and policy.name_id must be properly filled in such that the data stream can be set up and input and output port can find each other. You need to call this method on two ports (input and output) using the same transport and (probably) same name_id.

Parameters:

policy The connection policy describing how the stream must be set up.

Implemented in RTT::OutputPort< T >, and RTT::InputPort< T >.

bool InputPortInterface::disconnect ( PortInterface * port ) [virtual]

Removes the channel that connects this port to port.

All other ports or callbacks remain unaffected.

Implements RTT::base::PortInterface.

Definition at line 155 of file InputPortInterface.cpp.

References RTT::internal::ConnectionManager::disconnect().

PortInterface & PortInterface::doc ( const std::string & desc ) [inherited]

Set the documentation of this port.

Parameters:

desc	The description of the port

Returns:: a reference to this object.

Definition at line 60 of file PortInterface.cpp.

References RTT::DataFlowInterface::setPortDescription().

Referenced by RTT::InputPort< T >::createPortObject().

virtual DataSourceBase* RTT::base::InputPortInterface::getDataSource ( ) [pure virtual]

Returns a DataSourceBase interface to read this port.

The returned data source is always the same object and will be destroyed when the port is destroyed.

Implemented in RTT::InputPort< T >, and RTT::corba::RemoteInputPort.

const std::string& RTT::base::PortInterface::getDescription ( ) const [inline, inherited]

Get the documentation of this port.

Returns:: A description.

Definition at line 91 of file PortInterface.hpp.

virtual const internal::ConnectionManager* RTT::base::InputPortInterface::getManager ( ) const [inline, virtual]

Returns the connection manager of this port (if any).

This method provides access to the internals of this port in order to allow connection introspection.

Returns:: null if no such manager is available, or the manager otherwise.

See also:: ConnectionManager::getChannels() for a list of all connections of this port.

Implements RTT::base::PortInterface.

Definition at line 160 of file InputPortInterface.hpp.

FlowStatus InputPortInterface::read	(	DataSourceBase::shared_ptr	source,
		bool	copy_old_data = `true`
	)		`[virtual]`

Reads the port and updates the value hold by the given data source.

This is only valid for local ports.

source has to be an assignable data source

Reimplemented in RTT::InputPort< T >.

Definition at line 139 of file InputPortInterface.cpp.

bool InputPortInterface::removeConnection ( internal::ConnID * cid ) [virtual]

Removes the input channel.

Returns true if the provided channel was actually a channel of this port, and false otherwise.

You should usually not use this directly. Use disconnect() instead.

Implements RTT::base::PortInterface.

Definition at line 123 of file InputPortInterface.cpp.

Referenced by RTT::internal::ConnFactory::createStream(), and RTT::internal::ConnOutputEndpoint< T >::disconnect().

void PortInterface::setInterface ( DataFlowInterface * iface ) [inherited]

Once a port is added to a DataFlowInterface, it gets a pointer to that interface.

This allows advanced ports to track back to which component they belong.

Definition at line 92 of file PortInterface.cpp.

Referenced by RTT::DataFlowInterface::addLocalPort().

bool PortInterface::setName ( const std::string & name ) [inherited]

Change the name of this unconnected Port.

One can only change the name when it is not yet connected.

Return values:

true	if !this->connected(), the name has changed.
false	if this->connected(), the name has not been changed.

Definition at line 51 of file PortInterface.cpp.

References RTT::base::PortInterface::connected().

Referenced by RTT::DataFlowInterface::addEventPort(), RTT::TaskContext::addEventPort(), RTT::DataFlowInterface::addPort(), and RTT::TaskContext::addPort().

The documentation for this class was generated from the following files:

rtt/base/InputPortInterface.hpp
rtt/base/InputPortInterface.cpp
