RTT::marsh::TiXmlBase Class Reference

TiXmlBase is a base class for every class in TinyXml. More...

#include <rtt/marsh/tinyxml.h>

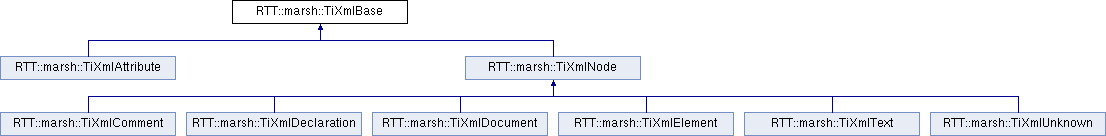

Inheritance diagram for RTT::marsh::TiXmlBase:
RTT::marsh::TiXmlAttribute RTT::marsh::TiXmlNode RTT::marsh::TiXmlComment RTT::marsh::TiXmlDeclaration RTT::marsh::TiXmlDocument RTT::marsh::TiXmlElement RTT::marsh::TiXmlText RTT::marsh::TiXmlUnknown

List of all members.

Public Types

enum  {
  TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_OUT_OF_MEMORY,
  TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES,
  TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT,
  TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA,
  TIXML_ERROR_STRING_COUNT
}

Public Member Functions

virtual void Print (FILE *cfile, int depth) const =0
 All TinyXml classes can print themselves to a filestream.
int Row () const
 Return the position, in the original source file, of this node or attribute.
int Column () const
 See Row()
void SetUserData (void *user)
void * GetUserData ()
virtual const char * Parse (const char *p, TiXmlParsingData *data, TiXmlEncoding encoding)=0

Static Public Member Functions

static void SetCondenseWhiteSpace (bool condense)
 The world does not agree on whether white space should be kept or not.
static bool IsWhiteSpaceCondensed ()
 Return the current white space setting.

Static Public Attributes

static const int utf8ByteTable [256]

Protected Member Functions

virtual void StreamOut (TIXML_OSTREAM *) const =0

Static Protected Member Functions

static const char * SkipWhiteSpace (const char *, TiXmlEncoding encoding)
static bool IsWhiteSpace (char c)
static bool IsWhiteSpace (int c)
static const char * ReadName (const char *p, TIXML_STRING *name, TiXmlEncoding encoding)
static const char * ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
static const char * GetEntity (const char *in, char *value, int *length, TiXmlEncoding encoding)
static const char * GetChar (const char *p, char *_value, int *length, TiXmlEncoding encoding)
static void PutString (const TIXML_STRING &str, TIXML_OSTREAM *out)
static void PutString (const TIXML_STRING &str, TIXML_STRING *out)
static bool StringEqual (const char *p, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
static int IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)
static int IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)
static int ToLower (int v, TiXmlEncoding encoding)
static void ConvertUTF32ToUTF8 (unsigned long input, char *output, int *length)

Protected Attributes

TiXmlCursor location
void * userData
 Field containing a generic user pointer.

Static Protected Attributes

static const char * errorString [TIXML_ERROR_STRING_COUNT]

Friends

class TiXmlNode
class TiXmlElement
class TiXmlDocument

Detailed Description

TiXmlBase is a base class for every class in TinyXml.

It does little except to establish that TinyXml classes can be printed and provide some utility functions.

In XML, the document and elements can contain other elements and other types of nodes.

	A Document can contain:	Element	(container or leaf)
							Comment (leaf)
							Unknown (leaf)
							Declaration( leaf )

	An Element can contain:	Element (container or leaf)
							Text	(leaf)
							Attributes (not on tree)
							Comment (leaf)
							Unknown (leaf)

	A Decleration contains: Attributes (not on tree)


Definition at line 189 of file tinyxml.h.


Member Function Documentation

virtual void RTT::marsh::TiXmlBase::Print ( FILE *  cfile,
int  depth
) const [pure virtual]

All TinyXml classes can print themselves to a filestream.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implemented in RTT::marsh::TiXmlDocument, RTT::marsh::TiXmlUnknown, RTT::marsh::TiXmlDeclaration, RTT::marsh::TiXmlText, RTT::marsh::TiXmlComment, RTT::marsh::TiXmlElement, and RTT::marsh::TiXmlAttribute.

Referenced by RTT::marsh::TiXmlElement::Print(), and RTT::marsh::TiXmlDocument::Print().

int RTT::marsh::TiXmlBase::Row ( ) const [inline]

Return the position, in the original source file, of this node or attribute.

The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also:
TiXmlDocument::SetTabSize()

Definition at line 235 of file tinyxml.h.

static void RTT::marsh::TiXmlBase::SetCondenseWhiteSpace ( bool  condense) [inline, static]

The world does not agree on whether white space should be kept or not.

In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this values is not thread safe.

Definition at line 212 of file tinyxml.h.


Member Data Documentation

const char * RTT::marsh::TiXmlBase::errorString [static, protected]
Initial value:
{
    "No error",
    "Error",
    "Failed to open file",
    "Memory allocation failed.",
    "Error parsing Element.",
    "Failed to read Element name",
    "Error reading Element value.",
    "Error reading Attributes.",
    "Error: empty tag.",
    "Error reading end tag.",
    "Error parsing Unknown.",
    "Error parsing Comment.",
    "Error parsing Declaration.",
    "Error document empty.",
    "Error null (0) or unexpected EOF found in input stream.",
    "Error parsing CDATA.",
}

Definition at line 373 of file tinyxml.h.

const int RTT::marsh::TiXmlBase::utf8ByteTable [static]
Initial value:
{

        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
        2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
        3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,
        4,  4,  4,  4,  4,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1
}

Definition at line 243 of file tinyxml.h.


The documentation for this class was generated from the following files:
