The base class for all method implementations. More...

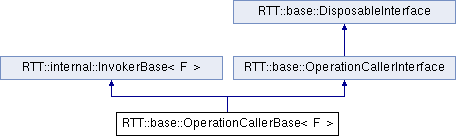

Inheritance diagram for RTT::base::OperationCallerBase< F >:

Public Types
typedef boost::shared_ptr < OperationCallerBase< F > >	shared_ptr
	Use this type for shared pointer storage of an OperationCallerInterface object.
Public Member Functions
virtual OperationCallerBase< F > *	cloneI (ExecutionEngine *caller) const =0
	Creates a new clone of this method using operator new().
virtual bool	ready () const =0
	Available such that implementations have a way to expose their ready-ness, ie being able to do the call.
virtual void	setExecutor (ExecutionEngine *ee)=0
	Set an executor which will execute this method when it is called or sent.
virtual void	setCaller (ExecutionEngine *ee)=0
	Sets the caller's engine of this operation.
virtual bool	setThread (ExecutionThread et, ExecutionEngine *executor)=0
	Sets the Thread execution policy of this object.
virtual void	executeAndDispose ()=0
	Execute functionality and free this object.
virtual void	dispose ()=0
	Just free this object without executing it.

Detailed Description

The base class for all method implementations.

Both local and remote method implementations must inherit from this class.

Definition at line 56 of file OperationCallerBase.hpp.

Member Function Documentation

template<class F>

virtual OperationCallerBase<F>* RTT::base::OperationCallerBase< F >::cloneI ( ExecutionEngine * caller ) const [pure virtual]

Creates a new clone of this method using operator new().

Parameters:

caller The ExecutionEngine of the task that wishes to call this method.

virtual void RTT::base::DisposableInterface::executeAndDispose ( ) [pure virtual, inherited]

Execute functionality and free this object.

You may no longer use this object after calling this method.

virtual void RTT::base::OperationCallerInterface::setCaller ( ExecutionEngine * ee ) [pure virtual, inherited]

Sets the caller's engine of this operation.

This object will be used to test if asynchronous messaging is required.

Parameters:

ee	The ExecutionEngine of the component that is calling this operation.

virtual void RTT::base::OperationCallerInterface::setExecutor ( ExecutionEngine * ee ) [pure virtual, inherited]

Set an executor which will execute this method when it is called or sent.

If ee is set to 0, the method will be executed in the client's thread or the GlobalExecutionEngine.

Parameters:

ee	The ExecutionEngine of the component that is executing this operation.

virtual bool RTT::base::OperationCallerInterface::setThread	(	ExecutionThread	et,
		ExecutionEngine *	executor
	)		`[pure virtual, inherited]`

Sets the Thread execution policy of this object.

Parameters:

et	OwnThread or ClientThread.
executor	The engine of the component owning this operation. In case it is not yet owned by a component, executor may be null.

The documentation for this struct was generated from the following file:
