RTT::DispatchInterface Class Reference

Dispatch a CommandInterface to a CommandProcessor and track its status. More...

#include <rtt/DispatchInterface.hpp>

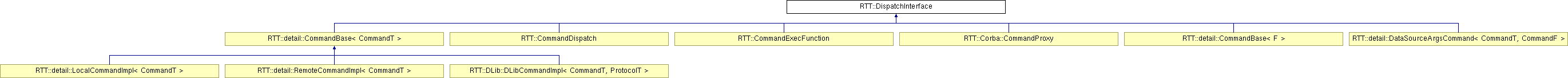

Inheritance diagram for RTT::DispatchInterface:
RTT::detail::CommandBase< CommandT > RTT::CommandDispatch RTT::CommandExecFunction RTT::Corba::CommandProxy RTT::detail::CommandBase< F > RTT::detail::DataSourceArgsCommand< CommandT, CommandF > RTT::detail::LocalCommandImpl< CommandT > RTT::detail::RemoteCommandImpl< CommandT > RTT::DLib::DLibCommandImpl< CommandT, ProtocolT >

List of all members.

Public Types

enum  Status {
  NotReady, Ready, Sent, NotAccepted,
  Accepted, Executed, NotValid, Valid,
  Done
}


The status progressions of a Dispatchable Command.

More...
typedef boost::shared_ptr
< DispatchInterface
shared_ptr
 If you want to share ownership of DispatchInterface instances, use this shared_ptr type.
typedef CommandInterface_ptr _ptr_type
typedef CommandInterface_var _var_type
typedef CommandInterface_out _out_type

Public Member Functions

virtual bool ready () const =0
 The command's effect is done.
virtual bool dispatch ()=0
 Dispatch a command.
virtual void reset ()=0
 After reset(), another attempt to dispatch the command will be made upon execute().
virtual bool sent () const =0
 Returns true if the command was sent to the CommandProcessor.
virtual bool accepted () const =0
 Returns true if the command was accepted when sent to the CommandProcessor.
virtual bool executed () const =0
 Returns true if the command was executed by the CommandProcessor.
virtual bool valid () const =0
 Returns true if the command was valid, i.e.
virtual bool done () const =0
 Returns true if the command is done.
virtual ConditionInterfacecreateCondition () const =0
virtual DispatchInterfaceclone () const =0
virtual DispatchInterfacecopy (std::map< const DataSourceBase *, DataSourceBase * > &alreadyCloned) const
virtual ::RTT::Corba::CommandList * getCommands (void)
virtual
::RTT::Corba::Descriptions *
getArguments (const char *command)
virtual char * getResultType (const char *command)
virtual char * getDescription (const char *command)
virtual ::RTT::Corba::Command_ptr createCommand (const char *command, const ::RTT::Corba::Arguments &args)
virtual ::RTT::Corba::Command_ptr createCommandAny (const char *command, const ::RTT::Corba::AnyArguments &args)
virtual ::CORBA::Boolean _is_a (const char *type_id)
virtual const char * _interface_repository_id (void) const
virtual ::CORBA::Boolean marshal (TAO_OutputCDR &cdr)

Static Public Member Functions

static CommandInterface_ptr _duplicate (CommandInterface_ptr obj)
static void _tao_release (CommandInterface_ptr obj)
static CommandInterface_ptr _narrow (::CORBA::Object_ptr obj)
static CommandInterface_ptr _unchecked_narrow (::CORBA::Object_ptr obj)
static CommandInterface_ptr _nil (void)
static void _tao_any_destructor (void *)

Protected Member Functions

virtual void RTT_Corba_CommandInterface_setup_collocation (void)

Friends

class TAO::Narrow_Utils< CommandInterface >

Detailed Description

Dispatch a CommandInterface to a CommandProcessor and track its status.

Definition at line 51 of file DispatchInterface.hpp.


Member Enumeration Documentation

The status progressions of a Dispatchable Command.

The order of these enums is important and should not be altered.

Enumerator:
Ready

The command is not yet initialised.

Sent

The command is ready for execution.

NotAccepted

The command has been sent/dispatched to the CommandProcessor.

Accepted

The command was not accepted by the CommandProcessor.

Executed

The command was accepted by the CommandProcessor.

NotValid

The command was executed by the CommandProcessor.

Valid

The command's arguments were found to be invalid.

Done

The command's arguments were valid.

Definition at line 65 of file DispatchInterface.hpp.


Member Function Documentation

virtual bool RTT::DispatchInterface::accepted (  )  const [pure virtual]

Returns true if the command was accepted when sent to the CommandProcessor.

A Command is accepted when the CommandProcessor was running and its queue was not full.

Implemented in RTT::CommandDispatch, RTT::CommandExecFunction, RTT::Corba::CommandProxy, and RTT::detail::DataSourceArgsCommand< CommandT, CommandF >.

virtual bool RTT::DispatchInterface::dispatch (  )  [pure virtual]

Dispatch a command.

If it is not accepted, fail, if it is accepted, return true

Implemented in RTT::CommandDispatch, RTT::CommandExecFunction, RTT::Corba::CommandProxy, and RTT::detail::DataSourceArgsCommand< CommandT, CommandF >.

virtual bool RTT::DispatchInterface::executed (  )  const [pure virtual]

Returns true if the command was executed by the CommandProcessor.

When executed() is true, you can check if it was found valid().

Implemented in RTT::CommandDispatch, RTT::CommandExecFunction, RTT::Corba::CommandProxy, and RTT::detail::DataSourceArgsCommand< CommandT, CommandF >.

virtual bool RTT::DispatchInterface::ready (  )  const [pure virtual]

The command's effect is done.

Returns true if the command is ready for dispatch. If ready() returns true, dispatch() can be safely called, otherwise, dispatch() will fail.

Implemented in RTT::CommandDispatch, RTT::CommandExecFunction, RTT::Corba::CommandProxy, and RTT::detail::DataSourceArgsCommand< CommandT, CommandF >.

virtual bool RTT::DispatchInterface::sent (  )  const [pure virtual]

Returns true if the command was sent to the CommandProcessor.

You can use this flag to check whether execute() was invoked.

Implemented in RTT::CommandDispatch, RTT::CommandExecFunction, RTT::Corba::CommandProxy, and RTT::detail::DataSourceArgsCommand< CommandT, CommandF >.

virtual bool RTT::DispatchInterface::valid (  )  const [pure virtual]

Returns true if the command was valid, i.e.

the command itself was executed and returned true.

Implemented in RTT::CommandDispatch, RTT::CommandExecFunction, RTT::Corba::CommandProxy, and RTT::detail::DataSourceArgsCommand< CommandT, CommandF >.


The documentation for this class was generated from the following file:
