RTT::XMLRPCMarshaller< output_stream > Class Template Reference

Outputs a Property or PropertyBag into a text stream in the XML-RPC format. More...

#include <rtt/marsh/XMLRPCMarshaller.hpp>

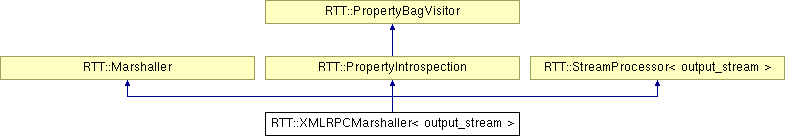

Inheritance diagram for RTT::XMLRPCMarshaller< output_stream >:

Public Member Functions
	XMLRPCMarshaller (output_stream &os)
virtual void	serialize (const Property< bool > &v)
virtual void	serialize (const Property< char > &v)
virtual void	serialize (const Property< int > &v)
virtual void	serialize (const Property< double > &v)
virtual void	serialize (const Property< std::string > &v)
virtual void	serialize (const PropertyBag &v)
	Serialize the contents of a property bag with headers and footers.
virtual void	serialize (const Property< PropertyBag > &b)
virtual void	introspect (const Property< bool > &v)
virtual void	introspect (const Property< char > &v)
virtual void	introspect (const Property< int > &v)
virtual void	introspect (const Property< double > &v)
virtual void	introspect (const Property< std::string > &v)
virtual void	introspect (const Property< PropertyBag > &v)
virtual void	flush ()
	Flush all buffers, write footers.
virtual void	serialize (PropertyBase *v)=0
	Serialize a property.
virtual void	introspect (Property< bool > &v)=0
	introspect a property of type bool.
virtual void	introspect (Property< char > &v)=0
	introspect a property of type char.
virtual void	introspect (Property< int > &v)=0
	introspect a property of type int.
virtual void	introspect (Property< unsigned int > &v)=0
	introspect a property of type unsigned int.
virtual void	introspect (Property< double > &v)=0
	introspect a property of type double.
virtual void	introspect (Property< std::string > &v)=0
	introspect a property of type string.
template<class T >
void	introspect (Property< T > &v)
	Unknown types must decompose theirselves into the primitives.
virtual void	introspect (Property< PropertyBag > &p)=0
	Callback for a Property which is a PropertyBag.
void	setStream (output_stream &_s)
	Set a new Stream.
output_stream &	getStream ()
	Get the current Stream.
Protected Member Functions
virtual void	introspect (PropertyBase *p)
	Callback for a Property which is not a PropertyBag.
void	introspect_T (PropertyBase *t)
	The default handler to execute when an unknown type is being decomposed.
Protected Attributes
output_stream *	s

Detailed Description

template<typename output_stream>
class RTT::XMLRPCMarshaller< output_stream >

Outputs a Property or PropertyBag into a text stream in the XML-RPC format.

Definition at line 60 of file XMLRPCMarshaller.hpp.

Member Function Documentation

template<typename output_stream >

virtual void RTT::XMLRPCMarshaller< output_stream >::flush ( ) [inline, virtual]

Flush all buffers, write footers.

Instructs the Marshaller to flush any remaining buffered data and write a footer to indicate that serialization is done. A marshaller may choose to write nothing until this function is called, or print a summary, or anything else.

Implements RTT::Marshaller.

Definition at line 160 of file XMLRPCMarshaller.hpp.

output_stream & RTT::StreamProcessor< output_stream >::getStream ( ) [inline, inherited]

Get the current Stream.

Returns:: The current Stream.

Definition at line 81 of file StreamProcessor.hpp.

template<class T >

void RTT::PropertyIntrospection::introspect ( Property< T > & v ) [inline, inherited]

Unknown types must decompose theirselves into the primitives.

See also:: TemplateTypeInfo

Definition at line 49 of file PropertyIntrospection.inl.

References RTT::PropertyIntrospection::introspect_T().

virtual void RTT::PropertyIntrospection::introspect ( Property< std::string > & v ) [pure virtual, inherited]

introspect a property of type string.

Parameters:

v
