RTT::IndexedValueDataSource< T, Index, SetType, IPred, APred > Class Template Reference

A ValueDataSource of which individual parts can be updated using an index. More...

#include <rtt/DataSources.hpp>

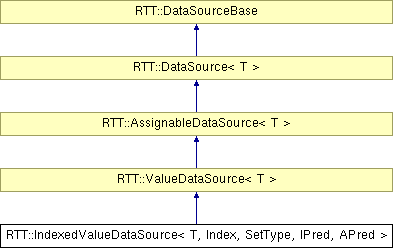

Inheritance diagram for RTT::IndexedValueDataSource< T, Index, SetType, IPred, APred >:
RTT::ValueDataSource< T > RTT::AssignableDataSource< T > RTT::DataSource< T > RTT::DataSourceBase

List of all members.

Public Types

typedef boost::intrusive_ptr
< IndexedValueDataSource< T,
Index, SetType, IPred, APred > > 		shared_ptr
 Use this type to store a pointer to an AssignableDataSource.
typedef DataSource< T >::value_t value_t
 The bare type of T is extracted into value_t.
typedef boost::call_traits
< value_t >::param_type 		param_t
typedef boost::call_traits
< value_t >::reference 		reference_t
typedef boost::call_traits
< value_t >::const_reference 		const_reference_t
typedef boost::remove_const
< typename boost::call_traits
< value_t >::param_type >
::type 		copy_t
typedef boost::intrusive_ptr
< const AssignableDataSource
< T > > 		const_ptr
 Use this type to store a const pointer to a DataSourceBase.
typedef T result_t

Public Member Functions

 IndexedValueDataSource (T idata)
CommandInterface * updateCommand (DataSourceBase *other)
 Generate a CommandInterface object which will update this DataSource with the value of another DataSource when execute()'ed.
CommandInterface * updatePartCommand (DataSourceBase *index, DataSourceBase *rhs)
 Generate a CommandInterface object which will partially update this DataSource with the value of another DataSource when execute()'ed.
IndexedValueDataSource< T,
Index, SetType, IPred, APred > * 		clone () const
 Return a shallow clone of this DataSource.
IndexedValueDataSource< T,
Index, SetType, IPred, APred > * 		copy (std::map< const DataSourceBase *, DataSourceBase * > &replace) const
 Create a deep copy of this DataSource, unless it is already cloned.
DataSource< T >::result_t get () const
 Return the data as type T.
DataSource< T >::result_t value () const
 Return the result of the last evaluate() function.
void set (typename AssignableDataSource< T >::param_t t)
AssignableDataSource< T >
::reference_t 		set ()
 Get a reference (or null) to the value of this DataSource.
template<>
RTT_API void set (AssignableDataSource< std::string >::param_t t)
virtual void set (param_t t)=0
 Set this DataSource with a value.
AssignableDataSource< T >
::const_reference_t 		rvalue () const
 Get a const reference (or null) to the value of this DataSource.
virtual bool update (DataSourceBase *other)
 Update the value of this DataSource with the value of an other DataSource.
virtual bool updateBlob (int protocol, const void *data)
 Updates the value of this DataSource with the value of a transportable data object.
virtual void * server (int protocol, void *data)
 Create an object server which 'mirrors' this DataSource.
virtual bool evaluate () const
 Force an evaluation of the DataSourceBase.
template<>
RTT_API bool evaluate () const
 Force an evaluation of the DataSourceBase.
virtual std::string getType () const
 Return useful type info in a human readable format.
virtual const TypeInfo * getTypeInfo () const
 Return the Orocos type info object.
virtual std::string getTypeName () const
 Return the Orocos type name, without const, pointer or reference qualifiers.
void ref () const
 Increase the reference count by one.
void deref () const
 Decrease the reference count by one and delete this on zero.
virtual void reset ()
 Reset the data to initial values.
virtual void updated ()
 In case the DataSource returns a 'reference' type, call this method to notify it that the data was updated in the course of an invocation of get().
virtual bool updatePart (DataSourceBase *part, DataSourceBase *other)
 Update part of the value of this DataSource with the value of an other DataSource.
std::ostream & write (std::ostream &os)
 Stream the contents of this object.
std::string toString ()
 Get the contents of this object as a string.
bool decomposeType (PropertyBag &targetbag)
 Decompose the contents of this object into properties.
bool composeType (DataSourceBase::shared_ptr source)
 Compose the contents of this object from another datasource.
virtual void * createBlob (int protocol)
 Creates a transportable data object with the current value of this DataSource.
virtual void * getBlob (int protocol)
 Creates a transportable data object with the current value of this DataSource.
virtual int serverProtocol () const
 Inspect if this DataSource is a proxy for a remote server object.
virtual void * method (int protocol, MethodC *orig, void *arg)
 Create an object server which 'mirrors' this DataSource.

Static Public Member Functions

static AssignableDataSource< T > * narrow (DataSourceBase *db)
 This method narrows a DataSourceBase to a typeded AssignableDataSource, possibly returning a new object.
static std::string GetType ()
 Return usefull type info in a human readable format.
static const TypeInfo * GetTypeInfo ()
 Return the Orocos type info.
static std::string GetTypeName ()
 Return the Orocos type name, without const, pointer or reference qualifiers.

Protected Attributes

DataSource< T >::value_t mdata
OS::AtomicInt refcount
 We keep the refcount ourselves.

Detailed Description

template<typename T, typename Index, typename SetType, typename IPred, typename APred>
class RTT::IndexedValueDataSource< T, Index, SetType, IPred, APred >

A ValueDataSource of which individual parts can be updated using an index.

Parameters:
T The type of the container.
Index The type of the index into the container.
SetType The type of an element of the container.
IPred A predicate which checks if the index is valid.
APred A predicate which checks if the container may be assigned to another container.

Definition at line 214 of file DataSources.hpp.

Member Function Documentation

template<typename T , typename Index , typename SetType , typename IPred , typename APred >
IndexedValueDataSource<T, Index, SetType,IPred,APred>* RTT::IndexedValueDataSource< T, Index, SetType, IPred, APred >::clone (  )  const [inline, virtual]

Return a shallow clone of this DataSource.

This method returns a duplicate of this instance which re-uses the DataSources this DataSource holds reference to. The clone() function is thus a non-deep copy.

Reimplemented from RTT::ValueDataSource< T >.

Definition at line 265 of file DataSources.hpp.

bool RTT::DataSourceBase::composeType ( DataSourceBase::shared_ptr  source  )  [inherited]

Compose the contents of this object from another datasource.

See also:
TypeInfo
template<typename T , typename Index , typename SetType , typename IPred , typename APred >
IndexedValueDataSource<T, Index, SetType,IPred,APred>* RTT::IndexedValueDataSource< T, Index, SetType, IPred, APred >::copy ( std::map< const DataSourceBase *, DataSourceBase * > &  alreadyCloned  )  const [inline, virtual]

Create a deep copy of this DataSource, unless it is already cloned.

Places the association (parent, clone) in alreadyCloned. If the DataSource is non-copyable (for example it represents the Property of a Task ), this may be returned.

Reimplemented from RTT::ValueDataSource< T >.

Definition at line 270 of file DataSources.hpp.

virtual void* RTT::DataSourceBase::createBlob ( int  protocol  )  [virtual, inherited]

Creates a transportable data object with the current value of this DataSource.

This does not trigger the evaluation() of this data source.

Returns:
a valid object or nill if this type is not supported.

Reimplemented in RTT::Corba::ExpressionProxy.

Referenced by RTT::Corba::CorbaDataObjectProxy< T >::Set().

bool RTT::DataSourceBase::decomposeType ( PropertyBag &  targetbag  )  [inherited]

Decompose the contents of this object into properties.

See also:
TypeInfo
template<>
RTT_API bool RTT::DataSource< bool >::evaluate (  )  const [inline, virtual, inherited]

Force an evaluation of the DataSourceBase.

Returns:
true on successful evaluation. If the DataSource itself contains a boolean, return that boolean.

Implements RTT::DataSourceBase.

template<typename T >
bool RTT::DataSource< T >::evaluate (  )  const [inline, virtual, inherited]

Force an evaluation of the DataSourceBase.

Returns:
true on successful evaluation. If the DataSource itself contains a boolean, return that boolean.

Implements RTT::DataSourceBase.

Reimplemented in RTT::detail::DataSourceAdaptor< From, To >, RTT::detail::DataSourceAdaptor< TFrom &, TFrom >, RTT::detail::DataSourceAdaptor< const TFrom &, const TFrom >, RTT::detail::DataSourceAdaptor< TFrom &, TFrom & >, RTT::detail::DataSourceAdaptor< TFrom, const TFrom & >, RTT::detail::DataSourceAdaptor< const TFrom, const TFrom & >, RTT::detail::AssignableDataSourceAdaptor< From, To >, RTT::detail::AssignableDataSourceAdaptor< From, const From & >, and RTT::detail::AssignableDataSourceAdaptor< To const &, To >.

Definition at line 52 of file DataSource.inl.

Referenced by RTT::detail::AssignableDataSourceAdaptor< To const &, To >::evaluate(), RTT::detail::AssignableDataSourceAdaptor< From, const From & >::evaluate(), RTT::detail::AssignableDataSourceAdaptor< From, To >::evaluate(), RTT::detail::DataSourceAdaptor< const TFrom, const TFrom & >::evaluate(), RTT::detail::DataSourceAdaptor< TFrom, const TFrom & >::evaluate(), RTT::detail::DataSourceAdaptor< TFrom &, TFrom & >::evaluate(), RTT::detail::DataSourceAdaptor< const TFrom &, const TFrom >::evaluate(), RTT::detail::DataSourceAdaptor< TFrom &, TFrom >::evaluate(), RTT::detail::DataSourceAdaptor< From, To >::evaluate(), and RTT::detail::AssignableDataSourceAdaptor< From, const From & >::get().

virtual void* RTT::DataSourceBase::getBlob ( int  protocol  )  [virtual, inherited]

Creates a transportable data object with the current value of this DataSource.

This does trigger the evaluation() of this data source. Equivalent to this->evaluate(); this->createBlob();

Returns:
a valid object or nill if this type is not supported.

Reimplemented in RTT::Corba::ExpressionProxy.

virtual void* RTT::DataSourceBase::method ( int  protocol,
MethodC *  orig,
void *  arg
) [virtual, inherited]

Create an object server which 'mirrors' this DataSource.

Returns:
The existing server if serverProtocol() == protocol, or a new method object reference otherwise.
See also:
Operations.idl

Reimplemented in RTT::Corba::ExpressionProxy.

template<typename T>
AssignableDataSource<T>::const_reference_t RTT::ValueDataSource< T >::rvalue (  )  const [inline, virtual, inherited]

Get a const reference (or null) to the value of this DataSource.

Getting a reference to an internal data structure is not thread-safe. DataSources which wish to protect their data from concurrent access may return the null reference with this method. All calls to rvalue() must first check whether they do not return null.

Implements RTT::AssignableDataSource< T >.

Definition at line 94 of file DataSources.hpp.

template<typename T >
void * RTT::AssignableDataSource< T >::server ( int  protocol,
void *  arg
) [inline, virtual, inherited]

Create an object server which 'mirrors' this DataSource.

Returns:
The existing server if serverProtocol() == protocol, or a new server object reference otherwise.
See also:
Operations.idl

Reimplemented from RTT::DataSourceBase.

Reimplemented in RTT::Corba::CORBAAssignableExpression< T >.

Definition at line 79 of file DataSource.inl.

References RTT::TypeInfo::getProtocol(), RTT::DataSource< T >::getTypeInfo(), and RTT::detail::TypeTransporter::server().

virtual int RTT::DataSourceBase::serverProtocol (  )  const [virtual, inherited]

Inspect if this DataSource is a proxy for a remote server object.

Returns:
0 if it is a local DataSource, or the protocol id if it is a proxy for a remove server.

Reimplemented in RTT::Corba::AnyDataSource, RTT::Corba::CORBAExpression< T >, RTT::Corba::CORBAExpression< void >, RTT::Corba::CORBAAssignableExpression< T >, and RTT::Corba::ExpressionProxy.

Referenced by RTT::AssignableDataSource< T >::narrow(), and RTT::DataSource< T >::narrow().

template<>
RTT_API void RTT::ValueDataSource< std::string >::set ( AssignableDataSource< std::string >::param_t  t  )  [inline, inherited]

.. ) is called.

template<typename T>
AssignableDataSource<T>::reference_t RTT::ValueDataSource< T >::set (  )  [inline, virtual, inherited]

Get a reference (or null) to the value of this DataSource.

Getting a reference to an internal data structure is not thread-safe. DataSources which wish to protect their data from concurrent access may return the null reference with this method. All calls to set() must first check whether they do not return null.

Implements RTT::AssignableDataSource< T >.

Definition at line 89 of file DataSources.hpp.

std::string RTT::DataSourceBase::toString (  )  [inherited]

Get the contents of this object as a string.

See also:
TypeInfo
template<class T >
bool RTT::AssignableDataSource< T >::update ( DataSourceBase *  other  )  [inline, virtual, inherited]

Update the value of this DataSource with the value of an other DataSource.

Update does a full update of the value, adding extra information if necessary.

Returns:
false if the DataSources are of different type OR if the contents of this DataSource can not be updated.

Reimplemented from RTT::DataSourceBase.

Definition at line 131 of file DataSource.inl.

References RTT::DataSource< T >::get().

template<typename T >
bool RTT::AssignableDataSource< T >::updateBlob ( int  protocol,
const void *  data
) [inline, virtual, inherited]

Updates the value of this DataSource with the value of a transportable data object.

Parameters:
any The value to update to.
Returns:
true if any had the correct type.

Reimplemented from RTT::DataSourceBase.

Definition at line 67 of file DataSource.inl.

References RTT::TypeInfo::getProtocol(), RTT::DataSource< T >::getTypeInfo(), and RTT::detail::TypeTransporter::updateBlob().

Referenced by RTT::Corba::CorbaBufferProxy< T >::front(), RTT::Corba::CorbaDataObjectProxy< T >::Get(), RTT::Corba::ExpressionProxy::NarrowAssignableDataSource(), and RTT::Corba::ExpressionProxy::NarrowDataSource().

template<typename T , typename Index , typename SetType , typename IPred , typename APred >
CommandInterface* RTT::IndexedValueDataSource< T, Index, SetType, IPred, APred >::updateCommand ( DataSourceBase *  other  )  [inline, virtual]

Generate a CommandInterface object which will update this DataSource with the value of another DataSource when execute()'ed.

Returns:
zero if the DataSource types do not match OR if the contents of this DataSource can not be updated.

Reimplemented from RTT::AssignableDataSource< T >.

Definition at line 226 of file DataSources.hpp.

virtual bool RTT::DataSourceBase::updatePart ( DataSourceBase *  part,
DataSourceBase *  other
) [virtual, inherited]

Update part of the value of this DataSource with the value of an other DataSource.

Update does a partial update of the value, according to part, which is most likely an index or hash value of some type.

Returns:
false if the DataSources are of different type OR if the contents of this DataSource can not be partially updated.

Reimplemented in RTT::detail::AssignableDataSourceAdaptor< To const &, To >.

Referenced by RTT::detail::AssignableDataSourceAdaptor< To const &, To >::updatePart().

template<typename T , typename Index , typename SetType , typename IPred , typename APred >
CommandInterface* RTT::IndexedValueDataSource< T, Index, SetType, IPred, APred >::updatePartCommand ( DataSourceBase *  part,
DataSourceBase *  other
) [inline, virtual]

Generate a CommandInterface object which will partially update this DataSource with the value of another DataSource when execute()'ed.

part is an index or hash value of some type.

Returns:
zero if the DataSource types do not match OR if the contents of this DataSource can not be partially updated.

Reimplemented from RTT::DataSourceBase.

Definition at line 241 of file DataSources.hpp.

std::ostream& RTT::DataSourceBase::write ( std::ostream &  os  )  [inherited]

Stream the contents of this object.

See also:
TypeInfo

Member Data Documentation

OS::AtomicInt RTT::DataSourceBase::refcount [mutable, protected, inherited]

We keep the refcount ourselves.

We aren't using boost::shared_ptr, because boost::intrusive_ptr is better, exactly because it can be used with refcounts that are stored in the class itself. Advantages are that the shared_ptr's for derived classes use the same refcount, which is of course very much desired, and that refcounting happens in an efficient way, which is also nice :)

Definition at line 89 of file DataSourceBase.hpp.

The documentation for this class was generated from the following file:
Generated on Thu Dec 23 13:22:42 2010 for Orocos Real-Time Toolkit by  doxygen 1.6.3
