RTT::detail::AssignableDataSourceAdaptor< From, To > Struct Template Reference

AssignableDataSourceAdaptor allows a conversion from an AssignableDataSource<T> to DataSource<[const] T [&]> which will return the result of the AssignableDataSource<T>::set() method in its get() (thus a reference to a heaped value). More...

#include <rtt/DataSourceAdaptor.hpp>

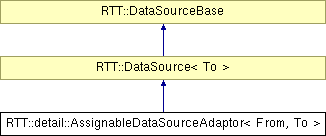

Inheritance diagram for RTT::detail::AssignableDataSourceAdaptor< From, To >:

List of all members.

Public Types
typedef boost::remove_const < typename boost::remove_reference< To > ::type >::type	value_t
	The bare type of T is extracted into value_t.
typedef To	result_t
typedef boost::intrusive_ptr < DataSource< To > >	shared_ptr
	Use this type to store a pointer to a DataSourceBase.
typedef boost::intrusive_ptr < const DataSource< To > >	const_ptr
	Use this type to store a const pointer to a DataSourceBase.
Public Member Functions
	AssignableDataSourceAdaptor (typename AssignableDataSource< From >::shared_ptr orig)
virtual DataSource< To >::result_t	get () const
	Return the data as type T.
virtual DataSource< To >::result_t	value () const
	Return the result of the last evaluate() function.
virtual void	updated ()
	In case the DataSource returns a 'reference' type, call this method to notify it that the data was updated in the course of an invocation of get().
virtual void	reset ()
	Reset the data to initial values.
virtual bool	evaluate () const
	Force an evaluation of the DataSourceBase.
virtual DataSource< To > *	clone () const
	Return a shallow clone of this DataSource.
virtual DataSource< To > *	copy (std::map< const DataSourceBase , DataSourceBase > &alreadyCloned) const
	Create a deep copy of this DataSource, unless it is already cloned.
virtual std::string	getType () const
	Return useful type info in a human readable format.
virtual const TypeInfo *	getTypeInfo () const
	Return the Orocos type info object.
virtual std::string	getTypeName () const
	Return the Orocos type name, without const, pointer or reference qualifiers.
void	ref () const
	Increase the reference count by one.
void	deref () const
	Decrease the reference count by one and delete this on zero.
virtual bool	update (DataSourceBase *other)
	Update the value of this DataSource with the value of an other DataSource.
virtual CommandInterface *	updateCommand (DataSourceBase *other)
	Generate a CommandInterface object which will update this DataSource with the value of another DataSource when execute()'ed.
virtual bool	updatePart (DataSourceBase part, DataSourceBase other)
	Update part of the value of this DataSource with the value of an other DataSource.
virtual CommandInterface *	updatePartCommand (DataSourceBase part, DataSourceBase other)
	Generate a CommandInterface object which will partially update this DataSource with the value of another DataSource when execute()'ed.
std::ostream &	write (std::ostream &os)
	Stream the contents of this object.
std::string	toString ()
	Get the contents of this object as a string.
bool	decomposeType (PropertyBag &targetbag)
	Decompose the contents of this object into properties.
bool	composeType (DataSourceBase::shared_ptr source)
	Compose the contents of this object from another datasource.
virtual void *	createBlob (int protocol)
	Creates a transportable data object with the current value of this DataSource.
virtual void *	getBlob (int protocol)
	Creates a transportable data object with the current value of this DataSource.
virtual bool	updateBlob (int protocol, const void *data)
	Updates the value of this DataSource with the value of a transportable data object.
virtual int	serverProtocol () const
	Inspect if this DataSource is a proxy for a remote server object.
virtual void *	server (int protocol, void *arg)
	Create an object server which 'mirrors' this DataSource.
virtual void *	method (int protocol, MethodC orig, void arg)
	Create an object server which 'mirrors' this DataSource.
Static Public Member Functions
static std::string	GetType ()
	Return usefull type info in a human readable format.
static const TypeInfo *	GetTypeInfo ()
	Return the Orocos type info.
static std::string	GetTypeName ()
	Return the Orocos type name, without const, pointer or reference qualifiers.
static DataSource< To > *	narrow (DataSourceBase *db)
	This method narrows a DataSourceBase to a typeded DataSource, possibly returning a new object.
Public Attributes
AssignableDataSource< From > ::shared_ptr	orig_
DataSource< To >::value_t	mcache
Protected Attributes
OS::AtomicInt	refcount
	We keep the refcount ourselves.

Detailed Description

template<class From, class To>
struct RTT::detail::AssignableDataSourceAdaptor< From, To >

AssignableDataSourceAdaptor allows a conversion from an AssignableDataSource<T> to DataSource<[const] T [&]> which will return the result of the AssignableDataSource<T>::set() method in its get() (thus a reference to a heaped value).

This class always makes a copy of the data during get() or value(). Use updated() if you modified this copy (for example because this class returns a reference to it).

Definition at line 364 of file DataSourceAdaptor.hpp.

Member Function Documentation

template<class From, class To>

virtual DataSource<To>* RTT::detail::AssignableDataSourceAdaptor< From, To >::clone ( ) const [inline, virtual]

Return a shallow clone of this DataSource.

This method returns a duplicate of this instance which re-uses the DataSources this DataSource holds reference to. The clone() function is thus a non-deep copy.

Implements RTT::DataSource< To >.

Definition at line 383 of file DataSourceAdaptor.hpp.

References RTT::DataSource< T >::clone().

bool RTT::DataSourceBase::composeType ( DataSourceBase::shared_ptr source ) [inherited]

Compose the contents of this object from another datasource.

See also:: TypeInfo

template<class From, class To>

virtual DataSource<To>* RTT::detail::AssignableDataSourceAdaptor< From, To >::copy ( std::map< const DataSourceBase *, DataSourceBase * > & alreadyCloned ) const [inline, virtual]

Create a deep copy of this DataSource, unless it is already cloned.

Places the association (parent, clone) in alreadyCloned. If the DataSource is non-copyable (for example it represents the Property of a Task ), this may be returned.

Implements RTT::DataSource< To >.

Definition at line 387 of file DataSourceAdaptor.hpp.

References RTT::DataSource< T >::copy().

virtual void* RTT::DataSourceBase::createBlob ( int protocol ) [virtual, inherited]

Creates a transportable data object with the current value of this DataSource.

This does not trigger the evaluation() of this data source.

Returns:: a valid object or nill if this type is not supported.

Reimplemented in RTT::Corba::ExpressionProxy.

Referenced by RTT::Corba::CorbaDataObjectProxy< T >::Set().

bool RTT::DataSourceBase::decomposeType ( PropertyBag & targetbag ) [inherited]

Decompose the contents of this object into properties.

See also:: TypeInfo

template<class From, class To>

virtual bool RTT::detail::AssignableDataSourceAdaptor< From, To >::evaluate ( ) const [inline, virtual]

Force an evaluation of the DataSourceBase.

Returns:: true on successful evaluation. If the DataSource itself contains a boolean, return that boolean.

Reimplemented from RTT::DataSource< To >.

Definition at line 381 of file DataSourceAdaptor.hpp.

References RTT::DataSource< T >::evaluate().

virtual void* RTT::DataSourceBase::getBlob ( int protocol ) [virtual, inherited]

Creates a transportable data object with the current value of this DataSource.

This does trigger the evaluation() of this data source. Equivalent to this->evaluate(); this->createBlob();

Returns:: a valid object or nill if this type is not supported.

Reimplemented in RTT::Corba::ExpressionProxy.

virtual void* RTT::DataSourceBase::method	(	int	protocol,
		MethodC *	orig,
		void *	arg
	)			`[virtual, inherited]`

Create an object server which 'mirrors' this DataSource.

Returns:: The existing server if serverProtocol() == protocol, or a new method object reference otherwise.

See also:: Operations.idl

Reimplemented in RTT::Corba::ExpressionProxy.

virtual void* RTT::DataSourceBase::server	(	int	protocol,
		void *	arg
	)			`[virtual, inherited]`

Create an object server which 'mirrors' this DataSource.

Returns:: The existing server if serverProtocol() == protocol, or a new server object reference otherwise.

See also:: Operations.idl

virtual int RTT::DataSourceBase::serverProtocol ( ) const [virtual, inherited]

Inspect if this DataSource is a proxy for a remote server object.

Returns:: 0 if it is a local DataSource, or the protocol id if it is a proxy for a remove server.

Reimplemented in RTT::Corba::AnyDataSource, RTT::Corba::CORBAExpression< T >, RTT::Corba::CORBAExpression< void >, RTT::Corba::CORBAAssignableExpression< T >, and RTT::Corba::ExpressionProxy.

Referenced by RTT::AssignableDataSource< T >::narrow(), and RTT::DataSource< T >::narrow().

std::string RTT::DataSourceBase::toString ( ) [inherited]

Get the contents of this object as a string.

See also:: TypeInfo

virtual bool RTT::DataSourceBase::update ( DataSourceBase * other ) [virtual, inherited]

Update the value of this DataSource with the value of an other DataSource.

Update does a full update of the value, adding extra information if necessary.

Returns:: false if the DataSources are of different type OR if the contents of this DataSource can not be updated.

virtual bool RTT::DataSourceBase::updateBlob	(	int	protocol,
		const void *	data
	)			`[virtual, inherited]`

Updates the value of this DataSource with the value of a transportable data object.

Parameters:

any

The value to update to.

Returns:: true if any had the correct type.

virtual CommandInterface* RTT::DataSourceBase::updateCommand ( DataSourceBase * other ) [virtual, inherited]

Generate a CommandInterface object which will update this DataSource with the value of another DataSource when execute()'ed.

Returns:: zero if the DataSource types do not match OR if the contents of this DataSource can not be updated.

virtual bool RTT::DataSourceBase::updatePart	(	DataSourceBase *	part,
		DataSourceBase *	other
	)			`[virtual, inherited]`

Update part of the value of this DataSource with the value of an other DataSource.

Update does a partial update of the value, according to part, which is most likely an index or hash value of some type.

Returns:: false if the DataSources are of different type OR if the contents of this DataSource can not be partially updated.

Reimplemented in RTT::detail::AssignableDataSourceAdaptor< To const &, To >.

Referenced by RTT::detail::AssignableDataSourceAdaptor< To const &, To >::updatePart().

virtual CommandInterface* RTT::DataSourceBase::updatePartCommand	(	DataSourceBase *	part,
		DataSourceBase *	other
	)			`[virtual, inherited]`

Generate a CommandInterface object which will partially update this DataSource with the value of another DataSource when execute()'ed.

part is an index or hash value of some type.

Returns:: zero if the DataSource types do not match OR if the contents of this DataSource can not be partially updated.

Reimplemented in RTT::Corba::CORBAAssignableExpression< T >, RTT::detail::AssignableDataSourceAdaptor< To const &, To >, and RTT::IndexedValueDataSource< T, Index, SetType, IPred, APred >.

Referenced by RTT::detail::AssignableDataSourceAdaptor< To const &, To >::updatePartCommand().

std::ostream& RTT::DataSourceBase::write ( std::ostream & os ) [inherited]

Stream the contents of this object.

See also:: TypeInfo

Member Data Documentation

OS::AtomicInt RTT::DataSourceBase::refcount [mutable, protected, inherited]

We keep the refcount ourselves.

We aren't using boost::shared_ptr, because boost::intrusive_ptr is better, exactly because it can be used with refcounts that are stored in the class itself. Advantages are that the shared_ptr's for derived classes use the same refcount, which is of course very much desired, and that refcounting happens in an efficient way, which is also nice :)

Definition at line 89 of file DataSourceBase.hpp.

The documentation for this struct was generated from the following file:

rtt/DataSourceAdaptor.hpp
