On 11/09/2012 10:33 AM, Dennis Mronga wrote:
> On 11/08/2012 04:10 PM, Dominick Vanthienen wrote:
>>
>>
>> On 11/08/2012 11:27 AM, Dennis Mronga wrote:
>>> On 11/08/2012 10:40 AM, Ruben Smits wrote:
>>>> On Thu, Nov 8, 2012 at 10:18 AM, Dennis Mronga<dennis [dot] mronga [..] ...> wrote:
>>>>> On 11/07/2012 03:16 PM, Ruben Smits wrote:
>>>>>> On Wed, Nov 7, 2012 at 10:37 AM, Dennis Mronga<dennis [dot] mronga [..] ...>
>>>>>> wrote:
>>>>>>> On 11/06/2012 01:23 PM, Dominick Vanthienen wrote:
>>>>>>>> Hi,
>>>>>>>>
>>>>>>>> On 11/05/2012 02:45 PM, Herman Bruyninckx wrote:
>>>>>>>>> On Mon, 5 Nov 2012, Dennis Mronga wrote:
>>>>>>>>>
>>>>>>>>>> Hello iTaSC users,
>>>>>>>>>>
>>>>>>>>>> I am working with iTaSC for a couple of weeks now, I implemented a
>>>>>>>>>> simple
>>>>>>>>>> example where the first task is to follow a Cartesian trajectory and
>>>>>>>>>> the
>>>>>>>>>> second to avoid the joint limits of our robot. I am using the existing
>>>>>>>>>> cartesian_motion and joint_limit_avoidance packages for this. It is
>>>>>>>>>> kind
>>>>>>>>>> of
>>>>>>>>>> working, but the output of the WDLSPriorVelSolver is very "noisy" when
>>>>>>>>>> I
>>>>>>>>>> activate CC_Cartesian, although the input trajectory is smooth. I
>>>>>>>>>> attached a

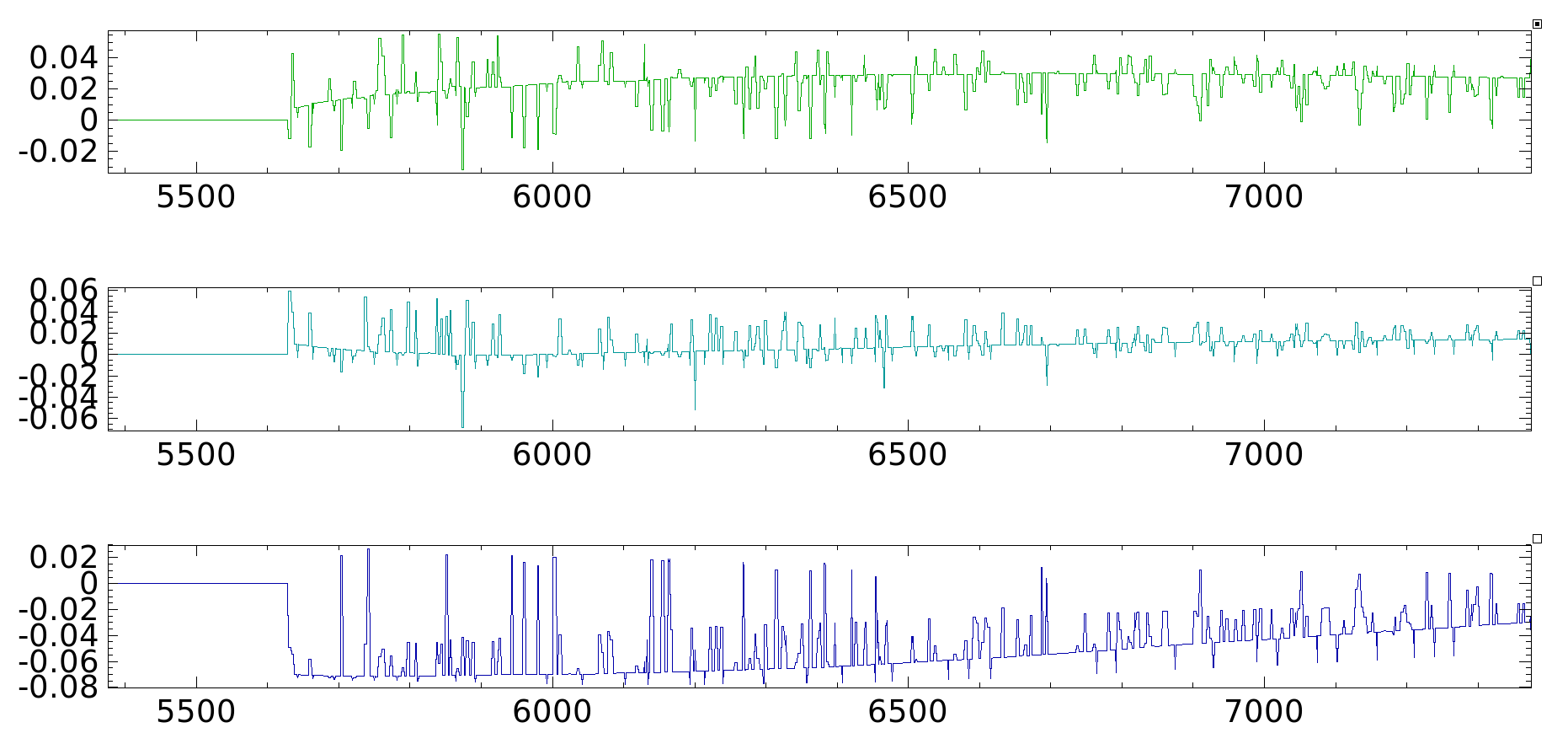

>>>>>>>>>> screenshot showing the output of the Solver`s qdot - port. When I
>>>>>>>>>> activate
>>>>>>>>>> the joint limit avoidance alone, the output of the solver is smooth
>>>>>>>>>> again.
>>>>>>>>>>
>>>>>>>>>> Now, I also tried the comanipulation demo example and here it's the
>>>>>>>>>> same: The
>>>>>>>>>> Cartesian Motion based tasks produce noisy output, while the other
>>>>>>>>>> tasks
>>>>>>>>>> give
>>>>>>>>>> smooth output.
>>>>>>>>>>
>>>>>>>>>> Does anyone of you know notice the same thing? Is this behavior of
>>>>>>>>>> CC_Cartesian "normal" or am I doing something wrong?
>>>>>>>> can you say what you are plotting here? ydot or qdot? which DOF?
>>>>>>>> can you also plot the ydot (input to the solver) for each priority, and
>>>>>>>> qdot (output of the solver)?
>>>>>>>> what weights and priorities are you using?
>>>>>>> I attached a plot of ydot (solver input) and qdot (solver output). I
>>>>>>> reduced
>>>>>>> the task to a 6 dof kinematic structure and apply only the Cartesian
>>>>>>> motion
>>>>>>> task, so the plots show all entries of ydot and qdot repectively. Units
>>>>>>> are
>>>>>>> m/s and rad/s for ydot and rad/s for qdot. The input of the cartesian
>>>>>>> motion task is given on the DesiredTwist port and is constant (0.05 m/s)
>>>>>>> for
>>>>>>> the x-velocity and 0 for all others. The priority of the task is 1. I
>>>>>>> also
>>>>>>> attached the .cpf file with the weights and gains. Result is still the
>>>>>>> same.
>>>>>>>
>>>>>>> Any ideas?
>>>> Another question,
>>>>
>>>> is this actually connected to the robot or are you using a simulator,
>>>> if so, how are you integrating the output qdots to q's?
>>>>
>>>> Ruben
>>>
>>> It is in simulation only, so there should be no noise at all.
>>>
>>> However, by now I've tested the whole thing on 4 different PCs. All of them have ubuntu 10.04 and ros electric. The only difference is that 2 of the systems are 32 bit and
>>> the other 2 are 64 bit architectures. Both, the comanipulation demo and my stuff are working nicely on the 64-bit systems. The problems occur only on the 32-bit systems.
>>>
>>> Could it be an issue that itasc or one of it's dependencies has to be compiled differently on 32 bit systems?
>>
>> Problems are (most likely) occuring in the solver, which has two main dependencies: KDL and Eigen
>> I think Eigen is more dependent on the system than KDL itself (which has Eigen under the hood anyway).
>> If you run after compiling under Debug, can you pin-point a function/line where the 'jumps' are 'created' (the SVD maybe?)
>> Another thing is to increase the Seps and precision properties
>
> I could trace back the problem. The jumps are not created in the solver, but in the Scene.cpp, line 962, where it computes the svd of the feature Jacobian. I already tried
> to modify the parameters epsilon and max_iter of svn_eigen_HH(), but that does not help.
which branch/tag of itasc_core are you using btw? Since it is about 60 lines further with me.
>
> The feature Jacobian looks something like this:
>
> [1 0 0 0 -1.20536 -0.00937785
> 0 1 0 1.20536 0 -0.165
> 0 0 1 0.00937785 0.165 0
> 0 0 0 1 0 0
> 0 0 0 0 1 0
> 0 0 0 0 0 1
the jacobian changes over time of course, this one is not singular, but maybe it is close at some point? Although with the VKC_cartesian, I don't expect any (since it uses
a full rotation matrix)
can you put the Sf matrix (the eigen values) on a port and see how they change over time?

Can I conclude (if it is not singular) that svd_eigen_HH of KDL is misbehaving on a 32 bit system?
what KDL version are you using?

>
