This class manages the access of remote TaskContext Corba Servers and a Corba Object Request Broker (Orb) which connects to these servers. More...

#include <rtt/transports/corba/TaskContextProxy.hpp>

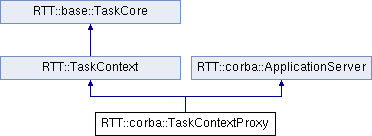

Inheritance diagram for RTT::corba::TaskContextProxy:

List of all members.

Public Types
typedef std::map < TaskContextProxy *, corba::CTaskContext_ptr >	PMap
typedef std::vector< std::string >	PeerList
	A list of Peer TaskContext names.
enum	TaskState { Init, PreOperational, FatalError, Exception, Stopped, Running, RunTimeError }
	Describes the different states a component can have. More...
Public Member Functions
corba::CTaskContext_ptr	server () const
	Get the Corba Object of the CTaskContext.
virtual bool	activate ()
	This method starts the ExecutionEngine of this component in case it was not running.
virtual bool	start ()
	This method starts the execution of the updateHook() with each trigger or period.
virtual bool	stop ()
	This method stops the execution of updateHook() of this component.
virtual bool	isRunning () const
	Inspect if the component is in the Running or RunTimeError state.
virtual bool	configure ()
	This method instructs the component to (re-)read configuration data and try to enter the Stopped state.
virtual bool	cleanup ()
	This method instructs a stopped component to enter the pre-operational state again.
virtual bool	isActive () const
	Inspect if the component's ExecutionEngine is processing requests.
virtual bool	isConfigured () const
	Inspect if the component is configured, i.e.
virtual bool	inFatalError () const
	Inspect if the component is in the FatalError state.
virtual bool	inRunTimeError () const
	Inspect if the component is in the RunTimeError state.
virtual TaskState	getTaskState () const
	Returns the current state of the TaskCore.
virtual void	setName (const std::string &n)
virtual bool	addPeer (TaskContext *peer, std::string alias="")
	Add a one-way connection from this task to a peer task.
virtual void	removePeer (const std::string &name)
	Remove a one-way connection from this task to a peer task.
virtual void	removePeer (TaskContext *peer)
	Remove a one-way connection from this task to a peer task.
virtual bool	connectPeers (TaskContext *peer)
	Add a two-way connection from this task to a peer task.
virtual void	disconnectPeers (const std::string &name)
	Remove a two-way connection from this task to a peer task.
virtual PeerList	getPeerList () const
	Return a standard container which contains all the Peer names of this TaskContext.
virtual bool	hasPeer (const std::string &peer_name) const
	Return true if it knows a peer by that name.
virtual TaskContext *	getPeer (const std::string &peer_name) const
	Get a pointer to a peer of this task.
virtual bool	connectPorts (TaskContext *peer)
	Add a data flow connection from this task's ports to a peer's ports.
virtual bool	connectServices (TaskContext *peer)
	Connects all requires/provides services of this component to these of a peer.
virtual bool	ready ()
	Checks the validity of this TaskContext.
virtual const std::string &	getName ()
	Returns the name of this TaskContext.
bool	setActivity (base::ActivityInterface *new_act)
	Sets the activity of this TaskContext.
base::ActivityInterface *	getActivity ()
	Get a pointer to the activity running this component.
template<typename T >
T *	getActivity ()
	Get a pointer to the activity running this component.
virtual void	clear ()
	Clear the complete interface of this Component.
virtual TaskState	getTargetState () const
	Returns the state this TaskCore is going to, or in case no transition is taking place, returns getTaskState().
void	setExecutionEngine (ExecutionEngine *engine)
	Use this method to re-set the execution engine of this task core.
const ExecutionEngine *	engine () const
	Get a const pointer to the ExecutionEngine of this Task.
ExecutionEngine *	engine ()
	Get a pointer to the ExecutionEngine of this Task.
Peer-to-Peer functions
These functions are used to setup and manage peer-to-peer networks of TaskContext objects.
virtual void	disconnect ()
	Disconnect this TaskContext from it's peers and ports.
Services
These functions are used to create and manage services. Use provides() or requires() to access the Service or ServiceRequester objects that contain all service related functions.
Service::shared_ptr	provides ()
	Returns this Service.
Service::shared_ptr	provides (const std::string &service_name)
	Returns a sub-Service which resorts under this Service.
ServiceRequester *	requires ()
	Returns the object that manages which methods this Task requires to be implemented by another task.
ServiceRequester *	requires (const std::string &service_name)
	Returns the object that manages which methods this Task requires to be implemented by another service.
template<class ServiceType >
boost::shared_ptr< ServiceType >	getProvider (const std::string &name)
	Use this method to be able to make OperationCaller calls to services provided by this component.
Operations
Adding and getting operations from the TaskContext interface. These functions all forward to the Service representing this TaskContext. Use provides() to access the complete Service interface of this TaskContext.
template<class Signature >
Operation< Signature > &	addOperation (Operation< Signature > &op)
	Add an operation object to the interface.
template<class Func , class Service >
Operation< typename internal::GetSignature< Func > ::Signature > &	addOperation (const std::string name, Func func, Service *serv, ExecutionThread et=ClientThread)
	Adds a C++ function as an operation.
template<class Signature >
Operation< Signature > &	addOperation (const std::string name, Signature *func, ExecutionThread et=ClientThread)
	Adds a C function as an operation.
OperationInterfacePart *	getOperation (std::string name)
	Get a previously added operation for use in a C++ OperationCaller object.
OperationInterface *	operations ()
	Returns the operations of this TaskContext as an OperationInterface.
Attributes
Adding and getting attributes from the TaskContext interface. These functions all forward to the Service representing this TaskContext. Use attributes() to access the complete ConfigurationInterface interface of this TaskContext.
template<class T >
bool	addAttribute (const std::string &name, T &attr)
	Adds a variable of any type as read/write attribute to the attribute interface.
bool	addAttribute (base::AttributeBase &a)
	Add an base::AttributeBase which remains owned by the user.
template<class T >
bool	addConstant (const std::string &name, const T &attr)
	Adds a variable of any type as read-only attribute to the attribute interface.
base::AttributeBase *	getAttribute (const std::string &name) const
	Adds a variable of any type as read/write attribute to the attribute interface.
ConfigurationInterface *	attributes ()
	Returns the attributes of this TaskContext as an ConfigurationInterface.
Properties
Adding and getting properties from the TaskContext interface. These functions all forward to the Service representing this TaskContext. Use properties() to access the complete PropertyBag interface of this TaskContext.
template<class T >
Property< T > &	addProperty (const std::string &name, T &attr)
	Adds a variable of any type as a property to the attribute interface.
bool	addProperty (base::PropertyBase &pb)
	Add an base::PropertyBase as a property.
base::PropertyBase *	getProperty (const std::string &name) const
	Get a Property with name name.
PropertyBag *	properties ()
	Returns the properties of this TaskContext as a PropertyBag.
Operations
These TaskCore functions are exported in a TaskContext as script methods and are for configuration, starting and stopping its ExecutionEngine.
virtual Seconds	getPeriod () const
	Get the configured execution period of this component.
virtual bool	setPeriod (Seconds s)
	Sets the period of this component.
virtual unsigned	getCpuAffinity () const
	Get the configured cpu affinity of this component.
virtual bool	setCpuAffinity (unsigned cpu)
	Sets the cpu affinity of this component.
virtual bool	inException () const
	Inspect if the component is in the Exception state.
virtual bool	update ()
	Invoke this method to execute the ExecutionEngine and the update() method.
virtual bool	trigger ()
	Invoke this method to trigger the thread of this TaskContext to execute its ExecutionEngine and the update() method.
virtual void	error ()
	Call this method in a Running state to indicate a run-time error condition.
virtual bool	recover ()
	Call this method in a RunTimeError or Exception state to indicate that the run-time error conditions are gone and nominal operation is resumed.
Static Public Member Functions
static void	DestroyOrb ()
	Invoke this method once to cleanup the orb.
static TaskContextProxy *	Create (std::string name, bool is_ior=false)
	Factory method: create a CORBA Proxy for an existing TaskContextServer.
static TaskContextProxy *	CreateFromFile (std::string filename)
	Factory method: create a CORBA Proxy for an existing TaskContextServer.
static TaskContext *	Create (::RTT::corba::CTaskContext_ptr task, bool force_remote=false)
	Factory method: create a CORBA Proxy for an existing TaskContextServer.
static PortableServer::POA_ptr	ProxyPOA ()
	Returns the default POA for all proxies.
static RTT_CORBA_API bool	InitOrb (int argc, char *argv[], Seconds orb_timeout=0)
	Invoke this method once to initialise the Orb which will run the task servers.
Static Public Attributes
static PMap	proxies
static CORBA::ORB_var	orb
	The orb of this process.
static PortableServer::POA_var	rootPOA
	The root POA of this process.
Protected Member Functions
	TaskContextProxy (std::string location, bool is_ior)
	Private constructor which creates a new connection to a stringified ior or taskname in NameServer.
	TaskContextProxy (::RTT::corba::CTaskContext_ptr t)
	Private constructor which creates a new connection to a corba object.
void	synchronize ()
void	fetchRequesters (ServiceRequester *parent, CServiceRequester_ptr csrq)
void	fetchServices (Service::shared_ptr parent, CService_ptr mtask)
void	forceActivity (base::ActivityInterface *new_act)
	Forces the current activity to become new_act, even if this TaskContext is still running.
virtual bool	configureHook ()
	Implement this method such that it contains the code which will be executed when configure() is called.
virtual void	cleanupHook ()
	Implement this method such that it contains the code which will be executed when cleanup() is called.
virtual bool	startHook ()
	Implement this method such that it contains the code which will be executed when start() is called.
virtual void	updateHook ()
	Function where the user must insert his 'application' code.
virtual bool	breakUpdateHook ()
	Implement this function if your code might block for long times inside the updateHook() function.
virtual void	errorHook ()
	Implement this method to contain code that must be executed in the RunTimeError state, instead of updateHook().
virtual void	exceptionHook ()
	Implement this method to contain code that must be executed when transitioning to the Exception state.
virtual void	stopHook ()
	Implement this method such that it contains the code which will be executed when stop() is called.
virtual void	fatal ()
	Call this method from any place to indicate that this component encountered a fatal error.
virtual void	exception ()
	Call this method to indicate a run-time exception happend.
Protected Attributes
std::list< base::PortInterface * >	port_proxies
	CDataFlowInterface does not delete ports automatically, because they can then be defined as members of the TaskContext classes.
corba::CTaskContext_var	mtask
ExecutionEngine *	ee
	The execution engine which calls update() and processes our commands, events etc.
TaskState	mTaskState
Static Protected Attributes
static PortableServer::POA_var	proxy_poa
	For now one POA handles all proxies.
Friends
class	::RTT::ExecutionEngine
Ports
These functions serve to manage ports and data flow connections. Use ports() to access the complete DataFlowInterface functionality of this TaskContext.
typedef boost::function< void(base::PortInterface *)	SlotFunction )
	Name and add a Port to the interface of this task and add a Service with the same name of the port.
base::PortInterface &	addPort (const std::string &name, base::PortInterface &port)
	Name and add a Port to the interface of this task and add a Service with the same name of the port.
base::PortInterface &	addPort (base::PortInterface &port)
	Add a Port to the interface of this task and add a Service with the same name of the port.
base::InputPortInterface &	addEventPort (const std::string &name, base::InputPortInterface &port, SlotFunction callback=SlotFunction())
	Name and add an Event triggering Port to the interface of this task and add a Service with the same name of the port.
base::InputPortInterface &	addEventPort (base::InputPortInterface &port, SlotFunction callback=SlotFunction())
	Add an Event triggering Port to the interface of this task and add a Service with the same name of the port.
base::PortInterface *	getPort (const std::string &name) const
	Get a port of this Component.
DataFlowInterface *	ports ()
	Get the Data flow ports of this task.
const DataFlowInterface *	ports () const
	Get the Data flow ports of this task.

Detailed Description

This class manages the access of remote TaskContext Corba Servers and a Corba Object Request Broker (Orb) which connects to these servers.

Definition at line 82 of file TaskContextProxy.hpp.

Member Typedef Documentation

typedef boost::function<void(base::PortInterface*) RTT::TaskContext::SlotFunction) [inherited]

Name and add a Port to the interface of this task and add a Service with the same name of the port.

Parameters:

name	The name to give to the port.
port	The port to add.

Definition at line 530 of file TaskContext.hpp.

Member Enumeration Documentation

enum RTT::base::TaskCore::TaskState [inherited]

Describes the different states a component can have.

When a TaskContext is being constructed, it is in the Init state. After the construction ends, the component arrives in the PreOperational (additional configuration required) or the Stopped (ready to run) state. Invoking start() will make a transition to the Running state and stop() back to the Stopped state. The Running state executes updateHook(). Finally, there is an FatalError state, in which the component can enter by calling the protected method fatal(). In this state, the ExecutionEngine is stopped and updateHook() is no longer called. The object should then be disposed by a supervision system.

Next to the fatal error, one run-time error level is available in the Running state as well. This level allows 'automatic' recovery by the component in case the problem is temporal. In case of problems, one may call the protected method error() when the component is Running. The component will enter the RunTimeError state and will cause the errorHook() to be called instead of updateHook(). When recover() is called, this run-time error state is left and the nominal Running state is entered again.

In order to check if these transitions are allowed, hook functions are executed, which can be filled in by the component builder.

A transition from PreOperational to Stopped is checked by calling the configureHook() method. If this method returns true, the transition is made, otherwise, the state remains PreOperational.
A transition from Stopped to Running is checked by calling the startHook() method. If this method returns true, the transition is made, otherwise, the state remains Stopped.
A transition from Running to Stopped is always allowed and the stopHook() method is called to inform the component of this transtion.
A transition from Stopped to PreOperational is always allowed and the cleanupHook() method is called to inform the component of this transtion.

Enumerator:

Init	The state during component construction.
PreOperational	The state indicating additional configuration is required.
FatalError	The state indicating the component encountered a fatal error and is unable to execute.
Exception	The state indicating the component encountered a C++ exception.
Stopped	The state indicating the component is ready to run.
Running	The state indicating the component is running [green].
RunTimeError	The state indicating that a run-time error has occured [red] and needs attention.

Definition at line 99 of file TaskCore.hpp.

Member Function Documentation

bool RTT::corba::TaskContextProxy::activate ( void ) [virtual]

This method starts the ExecutionEngine of this component in case it was not running.

Normally, it is always running. There is no way to deactivate it from the public interface.

Returns:: true if the ExecutionEngine is running (again) and false if it could not be started.

Reimplemented from RTT::base::TaskCore.

Definition at line 481 of file TaskContextProxy.cpp.

References RTT::TaskContext::clear().

template<class T >

bool RTT::TaskContext::addAttribute	(	const std::string &	name,
		T &	attr
	)		`[inline, inherited]`

Adds a variable of any type as read/write attribute to the attribute interface.

An Alias is created which causes contents of the attr variable always to be in sync with the contents of the attribute object in the interface.

Parameters:

name	The name of this attribute
attr	The variable that will be aliased.

Definition at line 404 of file TaskContext.hpp.

bool RTT::TaskContext::addAttribute ( base::AttributeBase & a ) [inline, inherited]

Add an base::AttributeBase which remains owned by the user.

This is a low-level function that can be used if you already created an Attribute object that does not belong yet to a service.

Parameters:

a	remains owned by the user, and becomes served by the repository.

Definition at line 430 of file TaskContext.hpp.

template<class T >

bool RTT::TaskContext::addConstant	(	const std::string &	name,
		const T &	attr
	)		`[inline, inherited]`

Adds a variable of any type as read-only attribute to the attribute interface.

An Alias is created which causes contents of the attribute always to be in sync with the contents of attr, but it can only be read through the interface.

Parameters:

name	The name of this attribute
attr	The variable that will be aliased.

Definition at line 417 of file TaskContext.hpp.

base::InputPortInterface& RTT::TaskContext::addEventPort	(	const std::string &	name,
		base::InputPortInterface &	port,
		SlotFunction	callback = `SlotFunction()`
	)		`[inline, inherited]`

Name and add an Event triggering Port to the interface of this task and add a Service with the same name of the port.

Parameters:

name	The name to give to the port.
port	The port to add.
callback	(Optional) provide a function which will be called asynchronously when new data arrives on this port. You can add more functions by using the port directly using base::PortInterface::getNewDataOnPort().

Definition at line 540 of file TaskContext.hpp.

References RTT::base::PortInterface::setName().

base::InputPortInterface& RTT::TaskContext::addEventPort	(	base::InputPortInterface &	port,
		SlotFunction	callback = `SlotFunction()`
	)		`[inline, inherited]`

Add an Event triggering Port to the interface of this task and add a Service with the same name of the port.

Parameters:

port	The port to add.
callback	(Optional) provide a function which will be called asynchronously when new data arrives on this port. You can add more functions by using the port directly using base::PortInterface::getNewDataOnPort().

Definition at line 553 of file TaskContext.hpp.

template<class Signature >

Operation<Signature>& RTT::TaskContext::addOperation ( Operation< Signature > & op ) [inline, inherited]

Add an operation object to the interface.

This version of addOperation exports an Operation object to the public interface of this component.

Parameters:

op	The operation object to add.

Returns:: true if it could be added.

Definition at line 340 of file TaskContext.hpp.

template<class Func , class Service >

Operation< typename internal::GetSignature<Func>::Signature >& RTT::TaskContext::addOperation	(	const std::string	name,
		Func	func,
		Service *	serv,
		ExecutionThread	et = `ClientThread`
	)		`[inline, inherited]`

Adds a C++ function as an operation.

See also:: Service::addOperation

Definition at line 351 of file TaskContext.hpp.

template<class Signature >

Operation< Signature >& RTT::TaskContext::addOperation	(	const std::string	name,
		Signature *	func,
		ExecutionThread	et = `ClientThread`
	)		`[inline, inherited]`

Adds a C function as an operation.

See also:: Service::addOperation

Definition at line 362 of file TaskContext.hpp.

bool RTT::corba::TaskContextProxy::addPeer	(	TaskContext *	peer,
		std::string	alias = `""`
	)		`[virtual]`

Add a one-way connection from this task to a peer task.

Parameters:

peer	The peer to add.
alias	An optional alias (another name) for the peer. defaults to peer->getName()

Reimplemented from RTT::TaskContext.

Definition at line 582 of file TaskContextProxy.cpp.

References RTT::TaskContext::clear(), Create(), server(), and RTT::corba::TaskContextServer::server().

base::PortInterface& RTT::TaskContext::addPort	(	const std::string &	name,
		base::PortInterface &	port
	)		`[inline, inherited]`

Name and add a Port to the interface of this task and add a Service with the same name of the port.

Parameters:

name	The name to give to the port.
port	The port to add.

Definition at line 516 of file TaskContext.hpp.

References RTT::base::PortInterface::setName().

base::PortInterface& RTT::TaskContext::addPort ( base::PortInterface & port ) [inline, inherited]

Add a Port to the interface of this task and add a Service with the same name of the port.

Parameters:

port	The port to add.

Definition at line 526 of file TaskContext.hpp.

template<class T >

Property<T>& RTT::TaskContext::addProperty	(	const std::string &	name,
		T &	attr
	)		`[inline, inherited]`

Adds a variable of any type as a property to the attribute interface.

A Property is created which causes contents of the property always to be in sync with the contents of attr.

Parameters:

name	The name of this property
attr	The variable that will be aliased.

Returns:: the Property object by reference, which you can further query or document.

Definition at line 472 of file TaskContext.hpp.

bool RTT::TaskContext::addProperty ( base::PropertyBase & pb ) [inline, inherited]

Add an base::PropertyBase as a property.

Returns:: false if a property with the same name already exists.

Definition at line 480 of file TaskContext.hpp.

bool RTT::TaskCore::breakUpdateHook ( ) [protected, virtual, inherited]

Implement this function if your code might block for long times inside the updateHook() function.

Insert in this hook the code to wake up that code or signal it otherwise that updateHook() is requested to return (for example by setting a flag). The method returns false by default.

Returns:: true if well received and updateHook() will soon return. False otherwise.

Definition at line 311 of file TaskCore.cpp.

Referenced by RTT::ExecutionEngine::breakLoop().

bool RTT::corba::TaskContextProxy::cleanup ( void ) [virtual]

This method instructs a stopped component to enter the pre-operational state again.

It calls cleanupHook().

Returns:: true if the component was in the Stopped state.

Reimplemented from RTT::base::TaskCore.

Definition at line 525 of file TaskContextProxy.cpp.

References RTT::TaskContext::clear().

void RTT::TaskCore::cleanupHook ( ) [protected, virtual, inherited]

Implement this method such that it contains the code which will be executed when cleanup() is called.

The default implementation is an empty function.

Definition at line 244 of file TaskCore.cpp.

Referenced by RTT::base::TaskCore::cleanup(), and RTT::base::TaskCore::exception().

void RTT::TaskContext::clear ( ) [virtual, inherited]

Clear the complete interface of this Component.

This method removes all objects and all methods, commands, events, properties and ports from the interface of this TaskContext.

Definition at line 374 of file TaskContext.cpp.

Referenced by activate(), addPeer(), cleanup(), configure(), connectPeers(), connectPorts(), connectServices(), disconnectPeers(), ready(), removePeer(), start(), stop(), and TaskContextProxy().

bool RTT::corba::TaskContextProxy::configure ( void ) [virtual]

This method instructs the component to (re-)read configuration data and try to enter the Stopped state.

This can only succeed if the component is not running and configureHook() returns true.

Reimplemented from RTT::base::TaskCore.

Definition at line 513 of file TaskContextProxy.cpp.

References RTT::TaskContext::clear().

bool RTT::TaskCore::configureHook ( ) [protected, virtual, inherited]

Implement this method such that it contains the code which will be executed when configure() is called.

The default implementation is an empty function which returns true.

Return values:

true	to indicate that configuration succeeded and the Stopped state may be entered.
false	to indicate that configuration failed and the Preoperational state is entered.

Definition at line 292 of file TaskCore.cpp.

Referenced by RTT::base::TaskCore::configure().

TaskContextProxy * RTT::corba::TaskContextProxy::Create	(	std::string	name,
		bool	is_ior = `false`
	)		`[static]`

Factory method: create a CORBA Proxy for an existing TaskContextServer.

Parameters:

name	The name of the TaskContextServer to connect to or the Object Reference of the object to connect to
is_ior	set to true if name is an IOR. Defaults to false.

Return values:

0	if the ORB is not initialised

Returns:: A new or previously created CORBA proxy for name.

Definition at line 379 of file TaskContextProxy.cpp.

References RTT::os::endl(), RTT::corba::ApplicationServer::orb, and TaskContextProxy().

Referenced by addPeer(), connectPeers(), connectPorts(), connectServices(), CreateFromFile(), and getPeer().

TaskContext * RTT::corba::TaskContextProxy::Create	(	::RTT::corba::CTaskContext_ptr	task,
		bool	force_remote = `false`
	)		`[static]`

Factory method: create a CORBA Proxy for an existing TaskContextServer.

This method may in fact return the real TaskContext in case the servant of task is in the same process.

Parameters:

task	The Object to create a proxy for.

Return values:

0	if the ORB is not initialised

Returns:: A new or previously created CORBA proxy for task, or the TaskContext itself.

Definition at line 416 of file TaskContextProxy.cpp.

References RTT::os::endl(), RTT::corba::ApplicationServer::orb, and TaskContextProxy().

TaskContextProxy * RTT::corba::TaskContextProxy::CreateFromFile ( std::string filename ) [static]

Factory method: create a CORBA Proxy for an existing TaskContextServer.

Parameters:

filename A file containing an IOR which refers to the existing TaskContextServer.

Return values:

0	if the ORB is not initialised

Returns:: A new or previously created CORBA proxy for filename.

Definition at line 399 of file TaskContextProxy.cpp.

References Create(), and RTT::corba::ApplicationServer::orb.

void RTT::TaskContext::disconnect ( ) [virtual, inherited]

Disconnect this TaskContext from it's peers and ports.

All its Data Flow Ports are disconnected as well. This method invokes removePeer() as well on the peers listed in this->getPeerList().

Definition at line 286 of file TaskContext.cpp.

References RTT::TaskContext::getName(), RTT::DataFlowInterface::getPorts(), and RTT::TaskContext::ports().

void RTT::TaskCore::error ( ) [virtual, inherited]

Call this method in a Running state to indicate a run-time error condition.

errorHook() will be called instead of updateHook(). If the error condition is solved, call recover().

Definition at line 151 of file TaskCore.cpp.

References RTT::base::TaskCore::Running, and RTT::base::TaskCore::RunTimeError.

void RTT::TaskCore::errorHook ( ) [protected, virtual, inherited]

Implement this method to contain code that must be executed in the RunTimeError state, instead of updateHook().

This allows you to specify the behaviour in an erroneous component. errorHook() is called as long as the component is not recover()'ed. After recover()'ed, the updateHook() is called again.

Definition at line 301 of file TaskCore.cpp.

void RTT::TaskCore::exception ( ) [protected, virtual, inherited]

Call this method to indicate a run-time exception happend.

First the TaskState is set to Exception. Next, if the taskstate was >= Running, stopHook() is called. Next, if the taskstate was >= Stopped, cleanupHook() is called. Finally, exceptionHook() is called. If any exception happens in exceptionHook(), fatal() is called.

Definition at line 158 of file TaskCore.cpp.

References RTT::base::TaskCore::cleanupHook(), RTT::base::TaskCore::Exception, RTT::base::TaskCore::exceptionHook(), RTT::base::TaskCore::fatal(), RTT::base::TaskCore::Running, RTT::base::TaskCore::stopHook(), and RTT::base::TaskCore::Stopped.

Referenced by RTT::base::TaskCore::cleanup(), RTT::base::TaskCore::configure(), RTT::base::TaskCore::start(), and RTT::base::TaskCore::stop().

void RTT::TaskCore::exceptionHook ( ) [protected, virtual, inherited]

Implement this method to contain code that must be executed when transitioning to the Exception state.

This allows you to specify the last actions in an erroneous component, after stopHook() and cleanupHook() were called.

See also:: recover() to leave the Exception state.

Definition at line 316 of file TaskCore.cpp.

Referenced by RTT::base::TaskCore::exception().

void RTT::TaskCore::fatal ( ) [protected, virtual, inherited]

Call this method from any place to indicate that this component encountered a fatal error.

It calls no hooks, the ExecutionEngine is stopped and the component waits destruction.

Definition at line 145 of file TaskCore.cpp.

References RTT::base::TaskCore::engine(), RTT::base::TaskCore::FatalError, RTT::base::RunnableInterface::getActivity(), and RTT::base::ActivityInterface::stop().

Referenced by RTT::base::TaskCore::exception().

void RTT::TaskContext::forceActivity ( base::ActivityInterface * new_act ) [protected, inherited]

Forces the current activity to become new_act, even if this TaskContext is still running.

This can be used to bypass the isRunning() check regular setActivity() does.

Definition at line 356 of file TaskContext.cpp.

References RTT::base::TaskCore::engine(), and RTT::base::ActivityInterface::stop().

Referenced by TaskContextProxy().

ActivityInterface * RTT::TaskContext::getActivity ( ) [inherited]

Get a pointer to the activity running this component.

Returns:: Our activity.

Definition at line 367 of file TaskContext.cpp.

References RTT::base::TaskCore::engine(), and RTT::base::RunnableInterface::getActivity().

template<typename T >

T* RTT::TaskContext::getActivity ( ) [inline, inherited]

Get a pointer to the activity running this component.

Unlike the non-template version, it converts it to the activity type provided.

Example usage in a startHook(): RTT::extras::FileDescriptorActivity* fd_activity = getActivity<RTT::extras::FileDescriptorActivity>(); if (fd_activity) { // do specific setup for FDActivity }

Returns:: Our activity if it is of type T, NULL otherwise.

Definition at line 173 of file TaskContext.hpp.

References RTT::TaskContext::getActivity().

Referenced by RTT::TaskContext::getActivity().

base::AttributeBase* RTT::TaskContext::getAttribute ( const std::string & name ) const [inline, inherited]

Adds a variable of any type as read/write attribute to the attribute interface.

An Alias is created which causes contents of the attr variable always to be in sync with the contents of the attribute object in the interface.

Parameters:

name	The name of this attribute
attr	The variable that will be aliased.

Definition at line 443 of file TaskContext.hpp.

unsigned RTT::TaskCore::getCpuAffinity ( ) const [virtual, inherited]

Get the configured cpu affinity of this component.

See also:: ActivityInterface::getCpuAffinity()

Definition at line 282 of file TaskCore.cpp.

References RTT::base::TaskCore::engine(), RTT::base::RunnableInterface::getActivity(), and RTT::base::ActivityInterface::getCpuAffinity().

OperationInterfacePart* RTT::TaskContext::getOperation ( std::string name ) [inline, inherited]

Get a previously added operation for use in a C++ OperationCaller object.

Store the result of this function in a OperationCaller<Signature> object.

Parameters:

name	The name of the operation to retrieve.

Returns:: true if it could be found, false otherwise.

Definition at line 376 of file TaskContext.hpp.

TaskContext * RTT::corba::TaskContextProxy::getPeer ( const std::string & peer_name ) const [virtual]

Get a pointer to a peer of this task.

Returns:: null if no such peer.

Reimplemented from RTT::TaskContext.

Definition at line 691 of file TaskContextProxy.cpp.

References Create().

Seconds RTT::TaskCore::getPeriod ( ) const [virtual, inherited]

Get the configured execution period of this component.

Note that this value only is used when the component isActive() or isRunning().

Return values:

0.0	if the component is non-periodic (event based).
a	negative number when the component is not executable.
a	positive value when the component is periodic. The period is expressed in seconds.

Todo:: : add a bool setPeriod(double) function to allow changing the period at run-time.

Definition at line 272 of file TaskCore.cpp.

References RTT::base::TaskCore::engine(), RTT::base::RunnableInterface::getActivity(), and RTT::base::ActivityInterface::getPeriod().

base::PortInterface* RTT::TaskContext::getPort ( const std::string & name ) const [inline, inherited]

Get a port of this Component.

Parameters:

name	The port name

Returns:: a pointer to a port or null if it does not exist.

Definition at line 562 of file TaskContext.hpp.

base::PropertyBase* RTT::TaskContext::getProperty ( const std::string & name ) const [inline, inherited]

Get a Property with name name.

Parameters:

name	The name of the property to search for.

Returns:: The Property with this name, zero if it does not exist

Definition at line 491 of file TaskContext.hpp.

template<class ServiceType >

boost::shared_ptr<ServiceType> RTT::TaskContext::getProvider ( const std::string & name ) [inline, inherited]

Use this method to be able to make OperationCaller calls to services provided by this component.

In case the service does not exist in this component, it tries to load the service using the plugin::PluginLoader class. If all fails, a null pointer is returned.

For example: getProvider<Scripting>("scripting")->loadPrograms("file.ops");

Parameters:

name	The name of the service to get, must have been added with addService.
ServiceType	the ServiceRequester type to use. Must have a constructor that takes TaskContext* as argument.

Returns:: a shared ServiceRequester object which allows to call the operations provided by service name.

Definition at line 309 of file TaskContext.hpp.

TaskCore::TaskState RTT::TaskCore::getTargetState ( ) const [virtual, inherited]

Returns the state this TaskCore is going to, or in case no transition is taking place, returns getTaskState().

For example, before start(), this function returns Stopped. During startHook(), it returns Running and after start() it also returns Running.

If getTaskState() != getTargetState, a transition is taking place.

See also:: getTaskState()

Definition at line 85 of file TaskCore.cpp.

TaskContext::TaskState RTT::corba::TaskContextProxy::getTaskState ( void ) const [virtual]

Returns the current state of the TaskCore.

For example, before start(), this function returns Stopped. During startHook() it returns Stopped, and after start() it returns Running.

See also:: getTargetState()

Reimplemented from RTT::base::TaskCore.

Definition at line 567 of file TaskContextProxy.cpp.

References RTT::base::TaskCore::Init.

bool RTT::corba::TaskContextProxy::inFatalError ( void ) const [virtual]

Inspect if the component is in the FatalError state.

There is no possibility to recover from this state. You need to destroy and recreate your component.

Reimplemented from RTT::base::TaskCore.

Definition at line 547 of file TaskContextProxy.cpp.

RTT_CORBA_API bool RTT::corba::ApplicationServer::InitOrb	(	int	argc,
		char *	argv[],
		Seconds	orb_timeout = `0`
	)		`[static, inherited]`

Invoke this method once to initialise the Orb which will run the task servers.

Parameters:

orb_timeout timeout value for each remote call, expressed in seconds. The resolution is up to 100 nano seconds. Anything smaller will be interpreted as a zero.

Definition at line 55 of file ApplicationServer.cpp.

References RTT::Logger::log(), RTT::Logger::nl(), RTT::corba::ApplicationServer::orb, and RTT::corba::ApplicationServer::rootPOA.

bool RTT::corba::TaskContextProxy::isActive ( void ) const [virtual]

Inspect if the component's ExecutionEngine is processing requests.

Normally this is always the case, but user code could stop the ExecutionEngine manually.

Reimplemented from RTT::base::TaskCore.

Definition at line 493 of file TaskContextProxy.cpp.

bool RTT::corba::TaskContextProxy::isConfigured ( void ) const [virtual]

Inspect if the component is configured, i.e.

in the Stopped, Active or Running state.

Reimplemented from RTT::base::TaskCore.

Definition at line 537 of file TaskContextProxy.cpp.

bool RTT::corba::TaskContextProxy::isRunning ( void ) const [virtual]

Inspect if the component is in the Running or RunTimeError state.

As RunTimeError is a substate of Running, this method also returns true when the component is in one of these states. See inRunTimeError() or testing the run-time error state.

Reimplemented from RTT::base::TaskCore.

Definition at line 503 of file TaskContextProxy.cpp.

Service::shared_ptr RTT::TaskContext::provides ( ) [inline, inherited]

Returns this Service.

Returns:: a shared pointer from this.

Definition at line 268 of file TaskContext.hpp.

Referenced by RTT::TaskContext::connectServices(), RTT::marsh::MarshallingService::Create(), RTT::scripting::ScriptingService::Create(), RTT::Service::Create(), RTT::marsh::PropertyLoader::load(), RTT::scripting::Parser::parseValueStatement(), RTT::scripting::PeerParser::reset(), and TaskContextProxy().

Service::shared_ptr RTT::TaskContext::provides ( const std::string & service_name ) [inline, inherited]

Returns a sub-Service which resorts under this Service.

Parameters:

service_name The name of the sub-service.

Definition at line 275 of file TaskContext.hpp.

bool RTT::corba::TaskContextProxy::ready ( void ) [virtual]

Checks the validity of this TaskContext.

When this method returns false, the TaskContext should not be used and various methods may throw exceptions. Use this in case the TaskContext could be a remote object. Will always return true when this TaskContext is local.

Reimplemented from RTT::TaskContext.

Definition at line 736 of file TaskContextProxy.cpp.

References RTT::TaskContext::clear().

bool RTT::TaskCore::recover ( ) [virtual, inherited]

Call this method in a RunTimeError or Exception state to indicate that the run-time error conditions are gone and nominal operation is resumed.

Makes transition to Running or PreOperational, depending on the state it was in.

Returns:: false if not applicable in the current state.

Definition at line 180 of file TaskCore.cpp.

References RTT::base::TaskCore::Exception, RTT::base::TaskCore::Running, and RTT::base::TaskCore::RunTimeError.

corba::CTaskContext_ptr RTT::corba::TaskContextProxy::server ( ) const

Get the Corba Object of the CTaskContext.

You need to duplicate this object reference in case you wish to keep a reference to it. This object universally identifies the remote TaskContextServer and can be used to tell other (remote) objects where to find it.

Definition at line 753 of file TaskContextProxy.cpp.

Referenced by addPeer().

bool RTT::TaskContext::setActivity ( base::ActivityInterface * new_act ) [inherited]

Sets the activity of this TaskContext.

The activity is owned by the TaskContext and you should not hold a pointer to it after this call. Use getActivity() lateron to retrieve a safe pointer to it.

Parameters:

new_act The new activity for this TaskContext, which becomes owned by this TaskContext, in case this method returns true.

Returns:: false if this->isRunning(). You can not change the activity of a TaskContext once it is running. In that case, new_act is not destroyed.

Note:: This function may not be called from the current ExecutionEngine thread (OwnThread), another thread (ClientThread) must call this function.

Definition at line 337 of file TaskContext.cpp.

References RTT::base::TaskCore::engine(), RTT::base::TaskCore::isRunning(), RTT::base::ActivityInterface::run(), and RTT::base::ActivityInterface::stop().

Referenced by TaskContextProxy().

bool RTT::TaskCore::setCpuAffinity ( unsigned cpu ) [virtual, inherited]

Sets the cpu affinity of this component.

Returns:: false if not allowed by the component's activity.

See also:: ActivityInterface::setCpuAffinity()

Definition at line 287 of file TaskCore.cpp.

References RTT::base::TaskCore::engine(), RTT::base::RunnableInterface::getActivity(), and RTT::base::ActivityInterface::setCpuAffinity().

void RTT::TaskCore::setExecutionEngine ( ExecutionEngine * engine ) [inherited]

Use this method to re-set the execution engine of this task core.

Parameters:

engine The new execution engine which will execute this TaskCore or null if a new execution engine must be created (the old is deleted in that case).

Postcondition:: The TaskCore is being run by engine or a new execution engine.

Definition at line 323 of file TaskCore.cpp.

References RTT::ExecutionEngine::addChild(), RTT::base::TaskCore::ee, RTT::base::TaskCore::engine(), RTT::ExecutionEngine::getParent(), and RTT::ExecutionEngine::removeChild().

bool RTT::TaskCore::setPeriod ( Seconds s ) [virtual, inherited]

Sets the period of this component.

You may call this at any time, it is simply forwarded to the component's activity object.

Returns:: false if not allowed by the component's activity.

See also:: ActivityInterface::setPeriod()

Definition at line 277 of file TaskCore.cpp.

References RTT::base::TaskCore::engine(), RTT::base::RunnableInterface::getActivity(), and RTT::base::ActivityInterface::setPeriod().

bool RTT::corba::TaskContextProxy::start ( void ) [virtual]

This method starts the execution of the updateHook() with each trigger or period.

This function calls the user function startHook(), which must return true in order to allow this component to run.

Return values:

false	if startHook() returned false if the component was not Stopped
true	if the Running state was entered.

Reimplemented from RTT::TaskContext.

Definition at line 457 of file TaskContextProxy.cpp.

References RTT::TaskContext::clear().

bool RTT::TaskCore::startHook ( ) [protected, virtual, inherited]

Implement this method such that it contains the code which will be executed when start() is called.

The default implementation is an empty function which returns true.

Return values:

true	to indicate that the component may run and the Running state may be entered.
false	to indicate that the component may not run and the Stopped state is entered.

Definition at line 296 of file TaskCore.cpp.

Referenced by RTT::base::TaskCore::start().

bool RTT::corba::TaskContextProxy::stop ( void ) [virtual]

This method stops the execution of updateHook() of this component.

You can override this method to do something else or in addition. This function calls stopHook() as well.

Returns:: false if the component was not Running or not Active.

Reimplemented from RTT::TaskContext.

Definition at line 469 of file TaskContextProxy.cpp.

References RTT::TaskContext::clear().

void RTT::TaskCore::stopHook ( ) [protected, virtual, inherited]

Implement this method such that it contains the code which will be executed when stop() is called.

The default implementation is an empty function.

Definition at line 319 of file TaskCore.cpp.

Referenced by RTT::base::TaskCore::exception(), and RTT::base::TaskCore::stop().

bool RTT::TaskCore::trigger ( ) [virtual, inherited]

Invoke this method to trigger the thread of this TaskContext to execute its ExecutionEngine and the update() method.

Return values:

false	if this->engine()->getActivity()->trigger() == false
true	otherwise.

Definition at line 96 of file TaskCore.cpp.

References RTT::base::TaskCore::engine(), RTT::base::RunnableInterface::getActivity(), and RTT::base::ActivityInterface::trigger().

Referenced by RTT::base::TaskCore::start().

bool RTT::TaskCore::update ( ) [virtual, inherited]

Invoke this method to execute the ExecutionEngine and the update() method.

Return values:

false	if this->engine()->getActivity()->execute() == false
true	otherwise.

Definition at line 89 of file TaskCore.cpp.

References RTT::base::TaskCore::engine(), RTT::base::ActivityInterface::execute(), and RTT::base::RunnableInterface::getActivity().

void RTT::TaskCore::updateHook ( ) [protected, virtual, inherited]

Function where the user must insert his 'application' code.

When the ExecutionEngine's Activity is a periodic, this function is called by the ExecutionEngine in each periodic step after all messages are processed. When it is executed by a non periodic activity, this function is called after a message is received and executed. It should not loop forever, since no commands or events are processed when this function executes. The default implementation is an empty function.

Definition at line 307 of file TaskCore.cpp.

Member Data Documentation

std::list<base::PortInterface*> RTT::corba::TaskContextProxy::port_proxies [protected]

CDataFlowInterface does not delete ports automatically, because they can then be defined as members of the TaskContext classes.

We must therefore delete in the proxy destructor the ones we are adding through synchronization

Definition at line 109 of file TaskContextProxy.hpp.

The documentation for this class was generated from the following files:

rtt/transports/corba/TaskContextProxy.hpp
rtt/transports/corba/TaskContextProxy.cpp

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Ports

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Member Function Documentation

Member Data Documentation
